MD203S-09B - DC/DC Converters

This page provides the datasheet information for the MD203S-09B, a member of the MD203S-03B DC/DC Converters family.

Features

  • Ɣ 2W Output Power Ɣ Miniature SIP Case Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Ɣ -40°C to +105°C Operating Temperature Range Input Voltage Range 3.3 VDC Input 5 VDC Input 12 VDC Input 15 VDC Input 2.97 3.3 4.5 5 10.8 12 13.5 15 3.63 VDC 5.5 VDC 13.2 VDC 16.5 VDC Ɣ 3000VDC Isolation Ɣ Single & D.

📥 Download Datasheet

Datasheet preview – MD203S-09B

Datasheet Details

Part number MD203S-09B
Manufacturer MicroPower Direct
File Size 676.92 KB
Description DC/DC Converters
Datasheet download datasheet MD203S-09B Datasheet

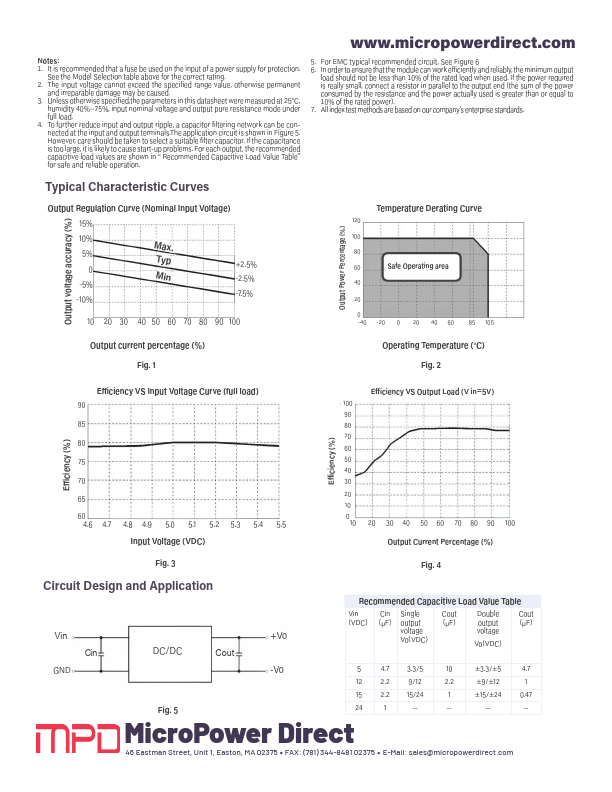

Additional preview pages of the MD203S-09B datasheet.
