MD205S-12B - DC/DC Converters

Product Overview

MicroPower Direct

Part number	MD205S-12B
Manufacturer	MicroPower Direct
File Size	676.92 KB
Description	DC/DC Converters
Datasheet	MD205S-12B Datasheet
Note	This datasheet PDF includes multiple part numbers: MD205S-12B, MD203S-03B. Please refer to the document for exact specifications by model.

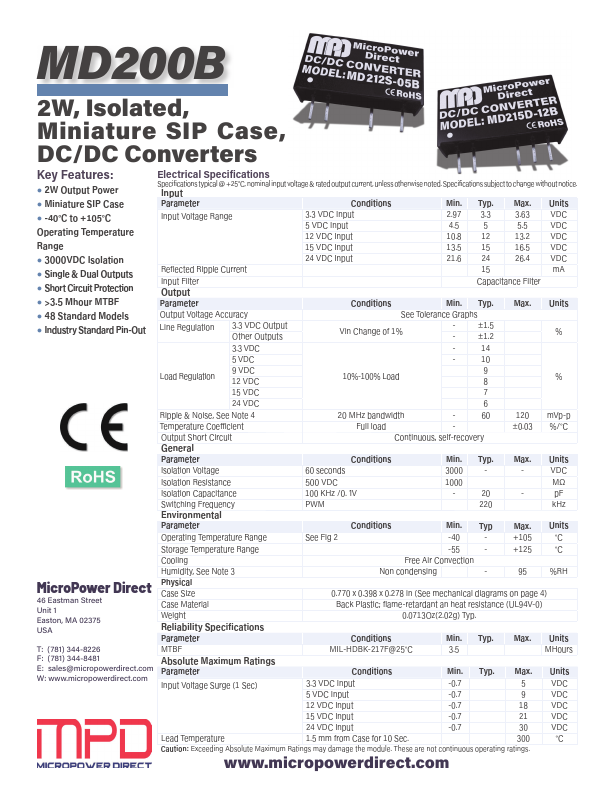

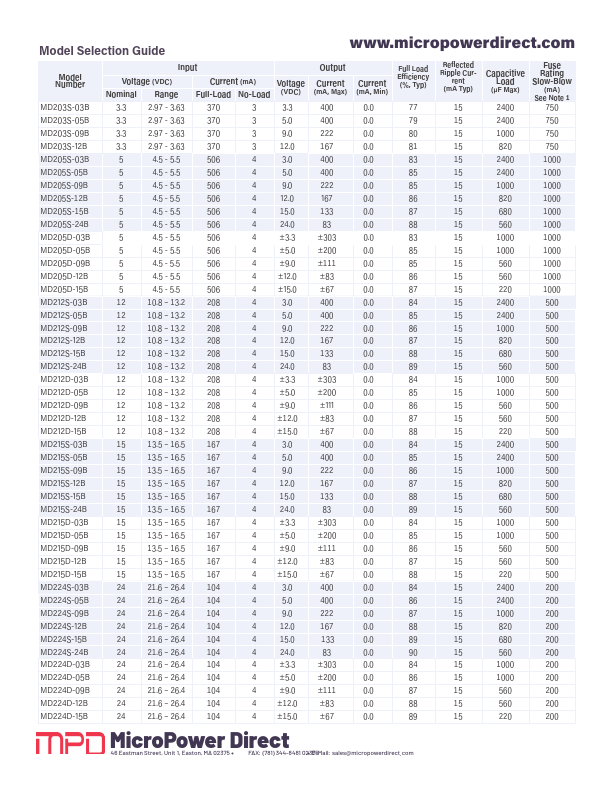

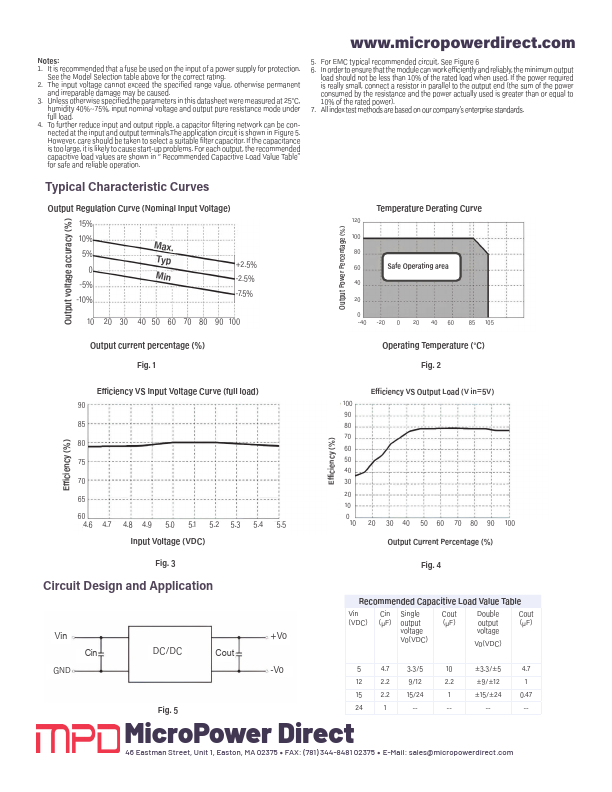

Additional preview pages of the MD205S-12B datasheet.

Ɣ 2W Output Power Ɣ Miniature SIP Case Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Ɣ -40°C to +105°C Operating Temperature Range Input Voltage Range 3.3 VDC Input 5 VDC Input 12 VDC Input 15 VDC Input 2.97 3.3 4.5 5 10.8 12 13.5 15 3.63 VDC 5.5 VDC 13.2 VDC 16.5 VDC Ɣ 3000VDC Isolation Ɣ Single & D.
