MD212D-15RU - 2W SIP Single & Dual Output DC/DC Converters

Product Overview

MicroPower Direct

📥 Download Datasheet

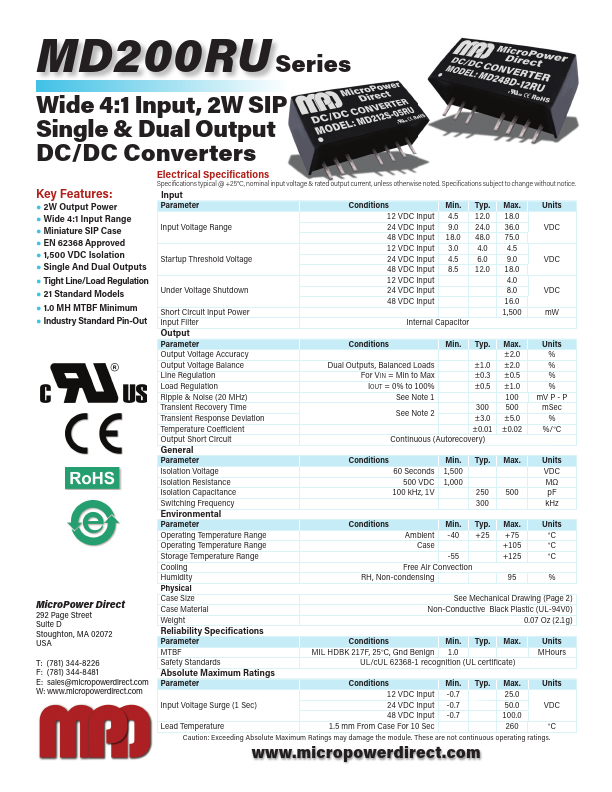

MD212D-15RU 2W SIP Single & Dual Output DC/DC Converters by MicroPower Direct - Datasheet Preview — Datasheet preview – MD212D-15RU

Datasheet Details

Part number	MD212D-15RU
Manufacturer	MicroPower Direct
File Size	1.11 MB
Description	2W SIP Single & Dual Output DC/DC Converters
Datasheet	MD212D-15RU Datasheet
Note	This datasheet PDF includes multiple part numbers: MD212D-15RU, MD212S-03RU. Please refer to the document for exact specifications by model.

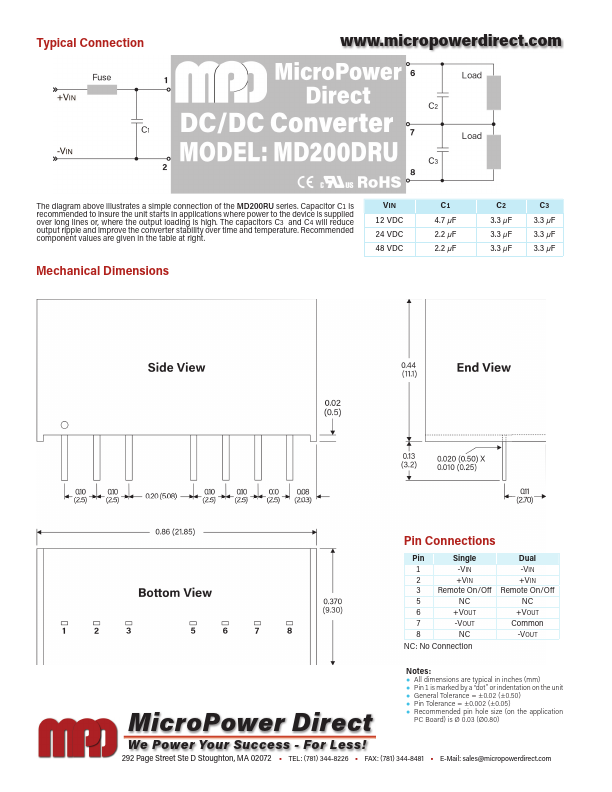

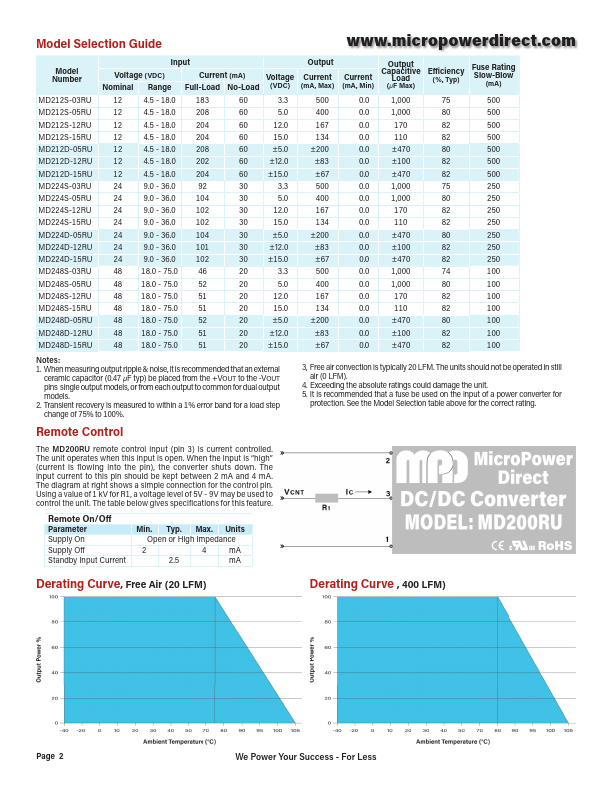

Additional preview pages of the MD212D-15RU datasheet.

Product details

Features

2W Output Power.
Wide 4:1 Input Range.
Miniature SIP Case.
EN 62368 Approved.
1,500 VDC Isolation.
Single And Dual Outputs.
Tight Line/Load Regulation.
21 Standard Models.
1.0 MH MTBF Minimum.
Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Electrical Specifications Specifications typical @ +25°C, nominal in.
