MD212S-03RU - 2W SIP Single & Dual Output DC/DC Converters

Features

  • 2W Output Power.
  • Wide 4:1 Input Range.
  • Miniature SIP Case.
  • EN 62368 Approved.
  • 1,500 VDC Isolation.
  • Single And Dual Outputs.
  • Tight Line/Load Regulation.
  • 21 Standard Models.
  • 1.0 MH MTBF Minimum.
  • Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Electrical Specifications Specifications typical @ +25°C, nominal in.

📥 Download Datasheet

Datasheet Details

Part number MD212S-03RU
Manufacturer MicroPower Direct
File Size 1.11 MB
Description 2W SIP Single & Dual Output DC/DC Converters
Datasheet download datasheet MD212S-03RU Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD2102 2W mono audio power amplifier ChipSourceTek
MD2103 3W mono audio power amplifier ChipSourceTek
MD2103DFH High voltage NPN power transistor ST Microelectronics
MD2103DFP High voltage NPN power transistor STMicroelectronics
MD2103DFX High Voltage NPN Power Transistor ST Microelectronics

Other Datasheets by MicroPower Direct

Part Number Description
MD212S-03B DC/DC Converters
MD212S-05B DC/DC Converters
MD212S-05RU 2W SIP Single & Dual Output DC/DC Converters
MD212S-09B DC/DC Converters
MD212S-12B DC/DC Converters

Full PDF Text Transcription

Click to expand full text

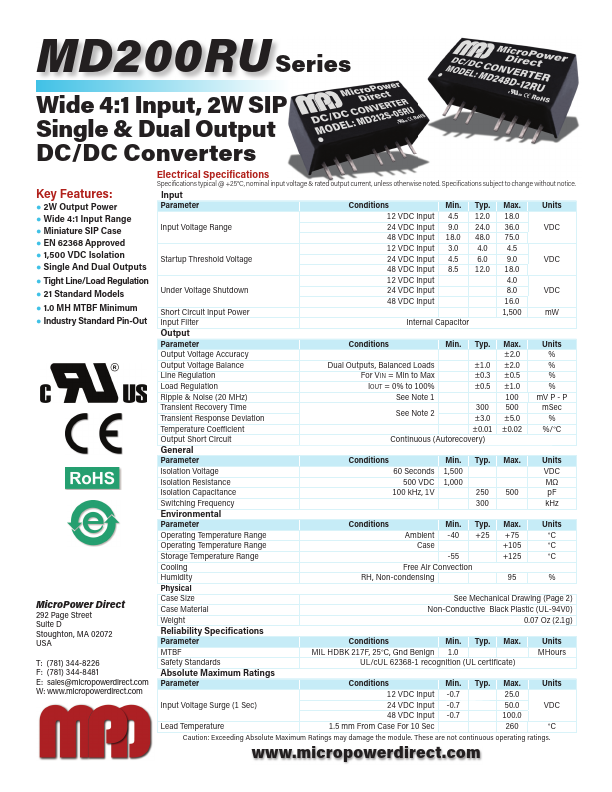

MD200RU Series Wide 4:1 Input, 2W SIP Single & Dual Output DC/DC Converters Key Features: ● 2W Output Power ● Wide 4:1 Input Range ● Miniature SIP Case ● EN 62368 Approved ● 1,500 VDC Isolation ● Single And Dual Outputs ● Tight Line/Load Regulation ● 21 Standard Models ● 1.0 MH MTBF Minimum ● Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect.com W: www.micropowerdirect.com Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 12 VDC Input 4.5 12.0 18.0 Input Voltage Range 24 VDC Input 9.0 24.0 36.
