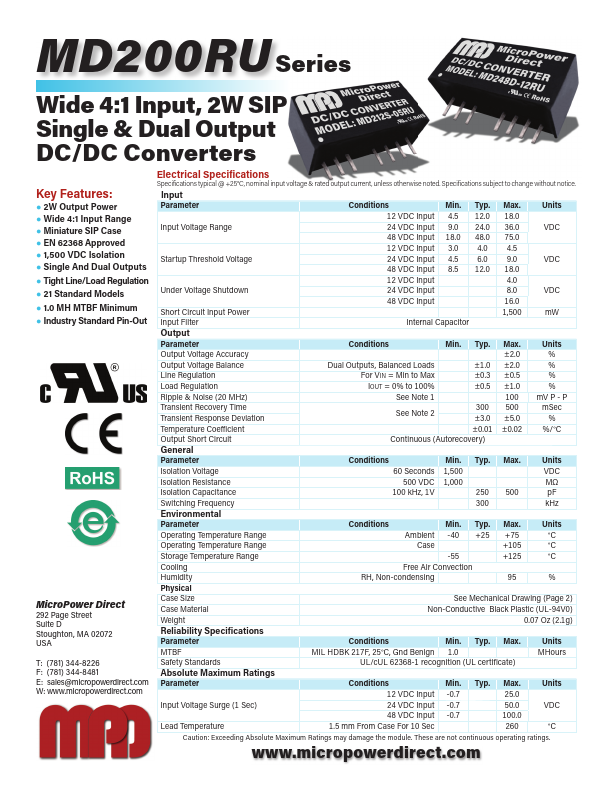

MD212S-05RU Overview
MD200RU Series Wide 4:1 Input, 2W SIP Single & Dual Output DC/DC Converters.
MD212S-05RU Key Features
- 2W Output Power
- Wide 4:1 Input Range
- Miniature SIP Case
- EN 62368 Approved
- 1,500 VDC Isolation
- Single And Dual Outputs
- Tight Line/Load Regulation
- 21 Standard Models
- 1.0 MH MTBF Minimum
- Industry Standard Pin-Out
