MD248S-05RU - 2W SIP Single & Dual Output DC/DC Converters

This page provides the datasheet information for the MD248S-05RU, a member of the MD212S-03RU 2W SIP Single & Dual Output DC/DC Converters family.

Features

  • 2W Output Power.
  • Wide 4:1 Input Range.
  • Miniature SIP Case.
  • EN 62368 Approved.
  • 1,500 VDC Isolation.
  • Single And Dual Outputs.
  • Tight Line/Load Regulation.
  • 21 Standard Models.
  • 1.0 MH MTBF Minimum.
  • Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Electrical Specifications Specifications typical @ +25°C, nominal in.

📥 Download Datasheet

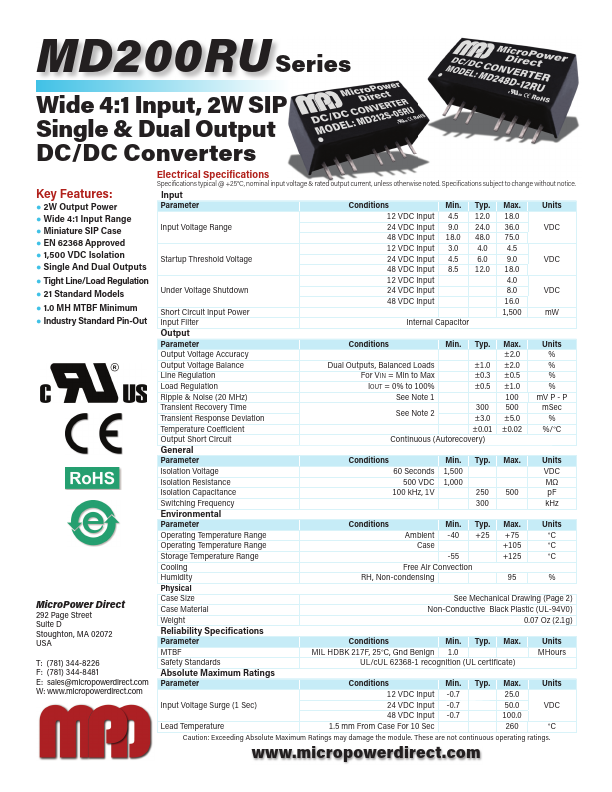

Datasheet preview – MD248S-05RU

Datasheet Details

Part number MD248S-05RU
Manufacturer MicroPower Direct
File Size 1.11 MB
Description 2W SIP Single & Dual Output DC/DC Converters
Datasheet download datasheet MD248S-05RU Datasheet

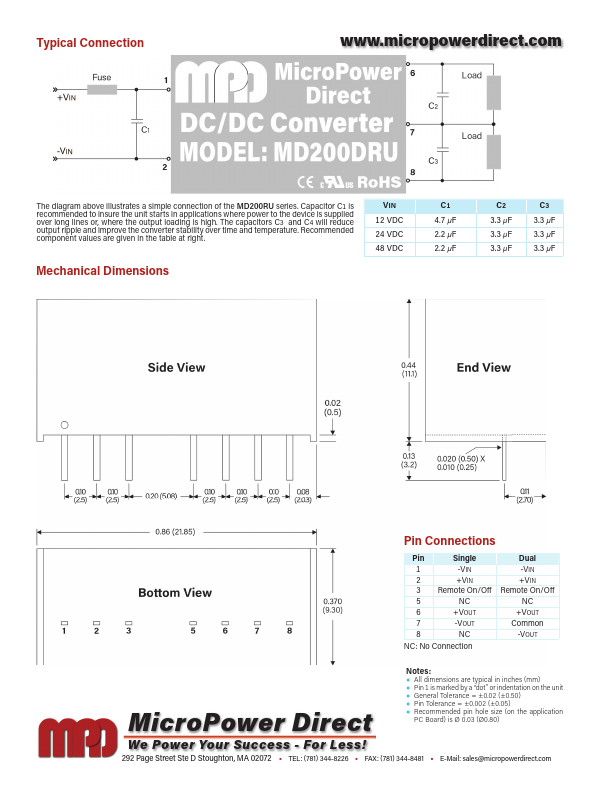

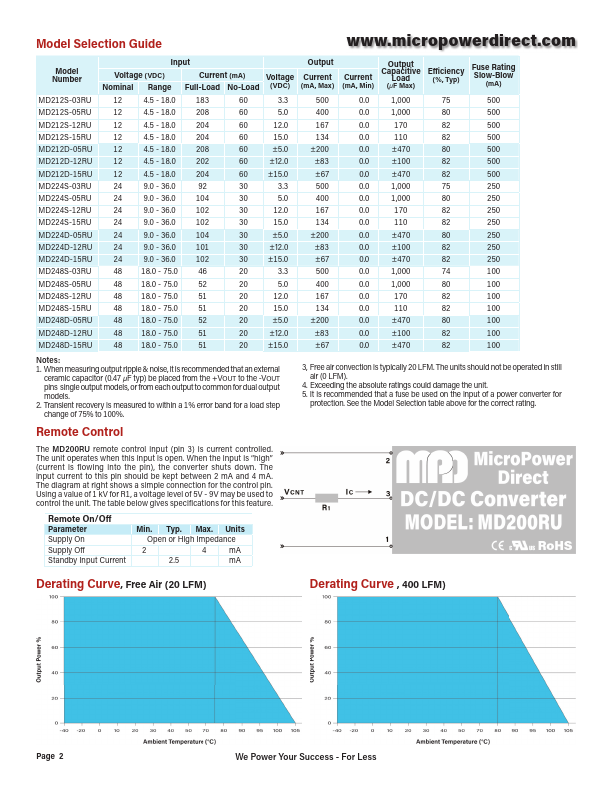

Additional preview pages of the MD248S-05RU datasheet.

📁 Similar Datasheet

  • MD2484FHXV - Dual NPN Transistor (Motorola)
  • MD2401 - 24 Amp Schottky Rectifier (Microsemi)
  • MD2402 - 24 Amp Schottky Rectifier (Microsemi)
  • MD2404 - 24 Amp Schottky Rectifier (Microsemi)
  • MD2406 - 24 Amp Schottky Rectifier (Microsemi)
  • MD2 - SILICON MINI BRIDGE RECTIFIER (Rectron Semiconductor)
  • MD2-B-34-610-1-A36-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
  • MD2-B-34-615-1-A36-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
  • MD2-B-34-620-1-A36-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
  • MD2-B-34-625-1-A36-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
Other Datasheets by MicroPower Direct

Full PDF Text Transcription

Click to expand full text
MD200RU Series Wide 4:1 Input, 2W SIP Single & Dual Output DC/DC Converters Key Features: ● 2W Output Power ● Wide 4:1 Input Range ● Miniature SIP Case ● EN 62368 Approved ● 1,500 VDC Isolation ● Single And Dual Outputs ● Tight Line/Load Regulation ● 21 Standard Models ● 1.0 MH MTBF Minimum ● Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect.com W: www.micropowerdirect.com Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 12 VDC Input 4.5 12.0 18.0 Input Voltage Range 24 VDC Input 9.0 24.0 36.
