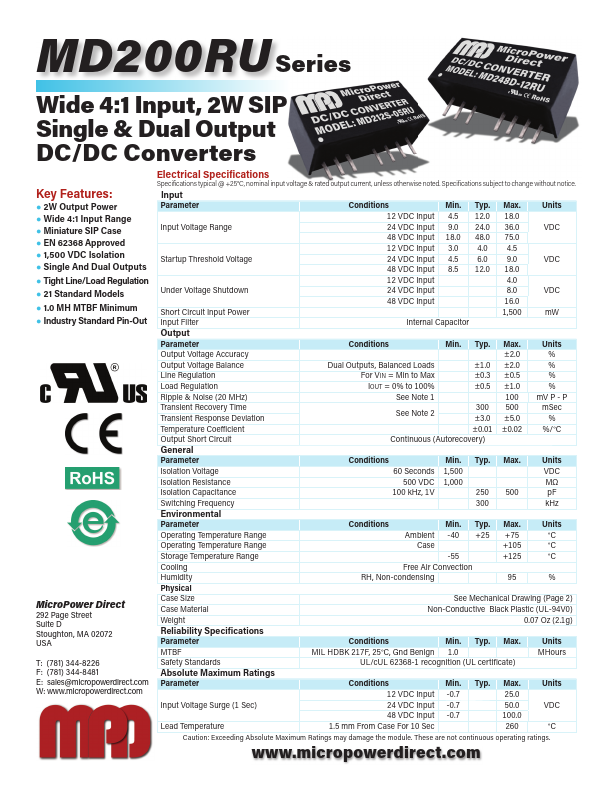

MD248S-12RU Datasheet 2W SIP Single & Dual Output DC/DC Converters

Manufacturer: MicroPower Direct

Overview: MD200RU Series Wide 4:1 Input, 2W SIP Single & Dual Output DC/DC Converters.

Download the MD248S-12RU datasheet PDF. This datasheet also includes the MD212S-03RU variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Datasheet Details

Part number MD248S-12RU
Manufacturer MicroPower Direct
File Size 1.11 MB
Description 2W SIP Single & Dual Output DC/DC Converters
Download MD248S-12RU Download (PDF)

Key Features

  • 2W Output Power.
  • Wide 4:1 Input Range.
  • Miniature SIP Case.
  • EN 62368 Approved.
  • 1,500 VDC Isolation.
  • Single And Dual Outputs.
  • Tight Line/Load Regulation.
  • 21 Standard Models.
  • 1.0 MH MTBF Minimum.
  • Industry Standard Pin-Out MicroPower Direct 292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. com W: www. micropowerdirect. com Electrical Specifications Specifications typical @ +25°C, nominal in.
