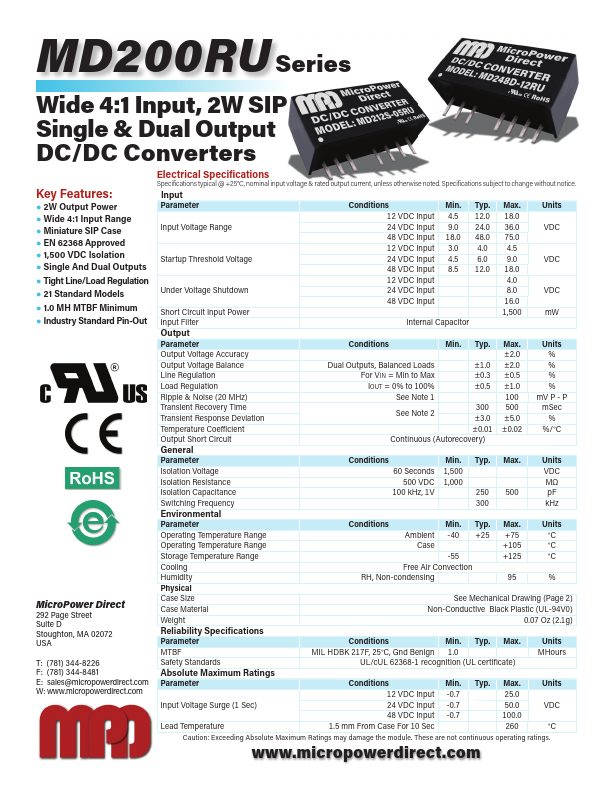

MD248S-15RU
Features
:
- 2W Output Power
- Wide 4:1 Input Range
- Miniature SIP Case
- EN 62368 Approved
- 1,500 VDC Isolation
- Single And Dual Outputs
- Tight Line/Load Regulation
- 21 Standard Models
- 1.0 MH MTBF Minimum
- Industry Standard Pin-Out
Micro Power Direct
292 Page Street Suite D Stoughton, MA 02072 USA T: (781) 344-8226 F: (781) 344-8481 E: sales@micropowerdirect. W: .micropowerdirect.
Electrical Specifications
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Conditions
Min. Typ. Max.
Units
12 VDC Input 4.5 12.0 18.0
Input Voltage Range
24 VDC Input 9.0 24.0 36.0
48 VDC Input 18.0 48.0 75.0
12 VDC Input 3.0 4.0 4.5
Startup Threshold Voltage
24 VDC Input 4.5 6.0 9.0
48 VDC Input 8.5 12.0 18.0
12 VDC Input
Under Voltage Shutdown
24 VDC Input
48 VDC Input
Short Circuit Input Power
1,500 m...
