MI1024D-15BRU - 4:1 Input Range DC/DC Converters

Download the MI1024D-15BRU datasheet PDF (MI1024S-03BRU included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 4:1 input range dc/dc converters.

Features

10W Output Power.
Miniature 1”x1” Case.
Wide 4:1 Input Range.
-40°C - +85°C Operating Temp Range.
1500VDC Isolation.
Single & Dual Outputs.
Over Voltage Protection.
Industry Standard Pin-Out Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Input Voltage Range 24 VDC Input 48.

Datasheet Details

Part number	MI1024D-15BRU
Manufacturer	MicroPower Direct
File Size	1.71 MB
Description	4:1 Input Range DC/DC Converters
Datasheet	MI1024D-15BRU Datasheet

📁 Similar Datasheet

MI1010AAT-2 - LCD (MULTI-INNO TECHNOLOGY)

MI1040GT-3 - LCD (MULTI-INNO TECHNOLOGY)

MI1040GT-5 - LCD MODULE (MULTI-INNO TECHNOLOGY)

MI1040GTD - LCD MODULE (MULTI-INNO TECHNOLOGY)

MI1064 - Thermo-electric Coolers (MI)

MI1206K260R-10 - Ferrite EMI Chip Beads (Laird)

MI1206K310R-10 - Ferrite EMI Chip Beads (Laird)

MI1206K601R-10 - Ferrite EMI Chip Beads (Laird)

MI1206K900R-10 - Ferrite EMI Chip Beads (Laird)

MI1206L391R-10 - Ferrite EMI Chip Beads (Laird)

Full PDF Text Transcription

Click to expand full text

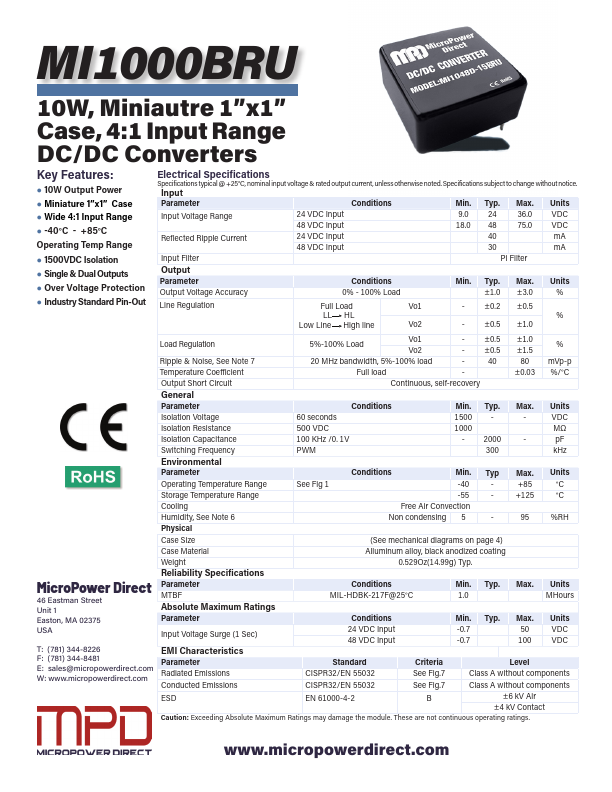

MI1000BRU 10W, Miniautre 1”x1” Case, 4:1 Input Range DC/DC Converters Key Features: ● 10W Output Power ● Miniature 1”x1” Case ● Wide 4:1 Input Range ● -40°C - +85°C Operating Temp Range ● 1500VDC Isolation ● Single & Dual Outputs ● Over Voltage Protection ● Industry Standard Pin-Out Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units Input Voltage Range 24 VDC Input 48 VDC Input 9.0 24 36.0 VDC 18.0 48 75.0 VDC Reflected Ripple Current 24 VDC Input 48 VDC Input 40 mA 30 mA Input Filter Pi Filter Output Parameter Conditions Min. Typ. Max. Units Output Voltage Accuracy 0% - 100% Load ±1.0 ±3.
