MI2024D-12BRU - Ultrawide 4:1 Input Range DC/DC Converters

Download the MI2024D-12BRU datasheet PDF (MI2024S-03BRU included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultrawide 4:1 input range dc/dc converters.

Features

  • 20W Output Power Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input.
  • Miniature 1”x1” Case.
  • Ultrawide 4:1 Wide Input Range.
  • -40°C to +105°C Parameter Input Voltage, See Note 4 Input Start Voltage Conditions 24 VDC Input 48 VDC Input 24 VDC Input 48 VDC Input Min. Typ. 9 24 18 48 Max. 36 75 9 18 Units VDC VDC Operating Temperature Ran.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MI2024S-03BRU-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MI2024D-12BRU
Manufacturer MicroPower Direct
File Size 844.37 KB
Description Ultrawide 4:1 Input Range DC/DC Converters
Datasheet download datasheet MI2024D-12BRU Datasheet

📁 Similar Datasheet

  • MI2002M2-1 - LCD Module (MULTI-INNO TECHNOLOGY)
  • MI204 - Antena Switch / Pin Diode (Mitsubishi Electric)
  • MI2050C - Dual Common Cathode Schottky Rectifier (Vishay)
  • MI2060C - Dual Common Cathode Schottky Rectifier (Vishay)
  • MI240160E-G-1 - LCD MODULE (MULTI-INNO TECHNOLOGY)
  • MI25664BO - LCD (MULTI-INNO TECHNOLOGY)
  • MI25664HO-B - OLED (MULTI-INNO TECHNOLOGY)
Other Datasheets by MicroPower Direct

Full PDF Text Transcription

Click to expand full text

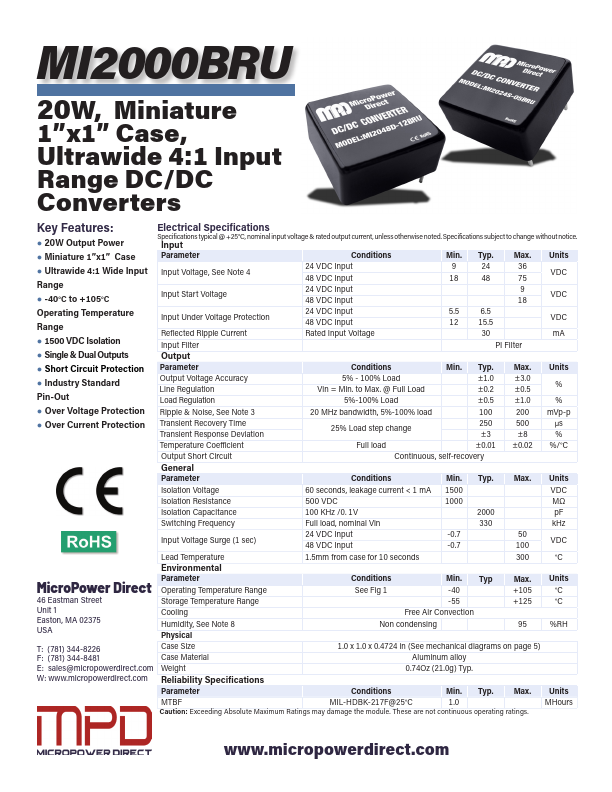

MI2000BRU 20W, Miniature 1”x1” Case, Ultrawide 4:1 Input Range DC/DC Converters Key Features: ● 20W Output Power Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input ● Miniature 1”x1” Case ● Ultrawide 4:1 Wide Input Range ● -40°C to +105°C Parameter Input Voltage, See Note 4 Input Start Voltage Conditions 24 VDC Input 48 VDC Input 24 VDC Input 48 VDC Input Min. Typ. 9 24 18 48 Max. 36 75 9 18 Units VDC VDC Operating Temperature Range ● 1500 VDC Isolation ● Single & Dual Outputs Input Under Voltage Protection Reflected Ripple Current Input Filter Output 24 VDC Input 48 VDC Input Rated Input Voltage 5.5 6.5 12 15.
