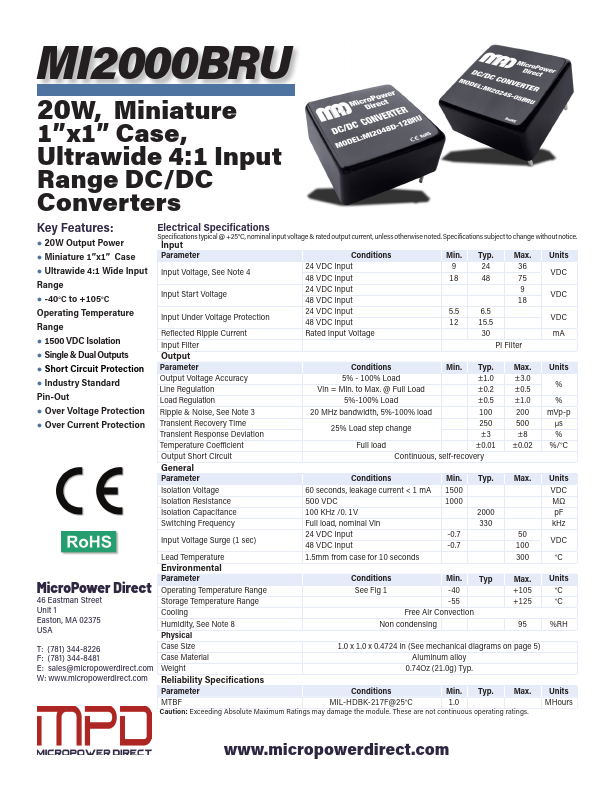

MI2048D-12BRU Overview
MI2000BRU 20W, Miniature 1”x1” Case, Ultrawide 4:1 Input Range DC/DC Converters.
MI2048D-12BRU Key Features
- 20W Output Power
- Miniature 1”x1” Case
- Ultrawide 4:1 Wide Input Range
- 40°C to +105°C
- 1500 VDC Isolation
- Single & Dual Outputs
- Short Circuit Protection
- Industry Standard Pin-Out
- Over Voltage Protection
- 100% Load Vin = Min. to Max. @ Full Load 5%-100% Load 20 MHz bandwidth, 5%-100% load
