MI2048D-24BRU Datasheet Ultrawide 4:1 Input Range DC/DC Converters

Manufacturer: MicroPower Direct

Download the MI2048D-24BRU datasheet PDF. This datasheet also includes the MI2024S-03BRU variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MI2024S-03BRU-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MI2048D-24BRU
Manufacturer MicroPower Direct
File Size 844.37 KB
Description Ultrawide 4:1 Input Range DC/DC Converters
Download MI2048D-24BRU Download (PDF)

Overview

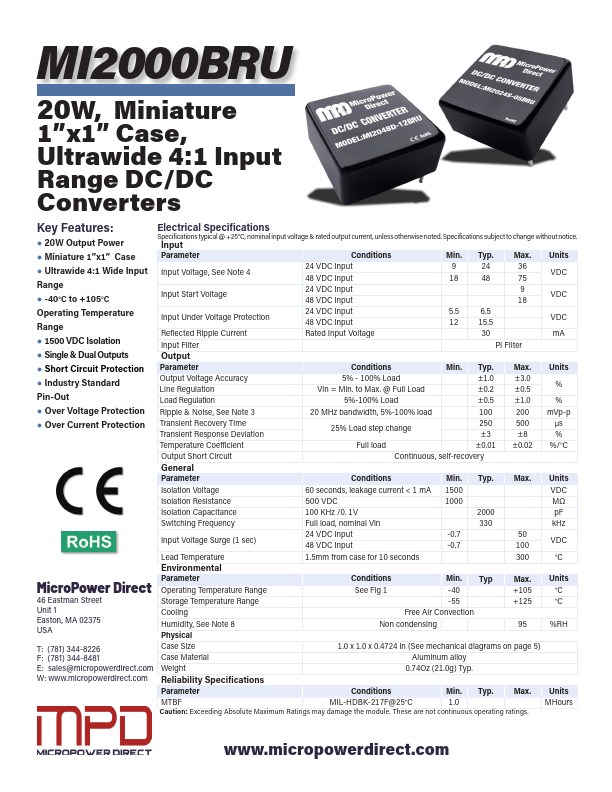

MI2000BRU 20W, Miniature 1”x1” Case, Ultrawide 4:1 Input Range DC/DC Converters.

Key Features

  • 20W Output Power Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input.
  • Miniature 1”x1” Case.
  • Ultrawide 4:1 Wide Input Range.
  • -40°C to +105°C Parameter Input Voltage, See Note 4 Input Start Voltage Conditions 24 VDC Input 48 VDC Input 24 VDC Input 48 VDC Input Min. Typ. 9 24 18 48 Max. 36 75 9 18 Units VDC VDC Operating Temperature Ran.
