ML103S-03E Datasheet 1W Ultra-Miniature SMT DC/DC Converters

Manufacturer: MicroPower Direct

Datasheet Details

Part number	ML103S-03E
Manufacturer	MicroPower Direct
File Size	4.13 MB
Description	1W Ultra-Miniature SMT DC/DC Converters
Download	ML103S-03E Download (PDF)

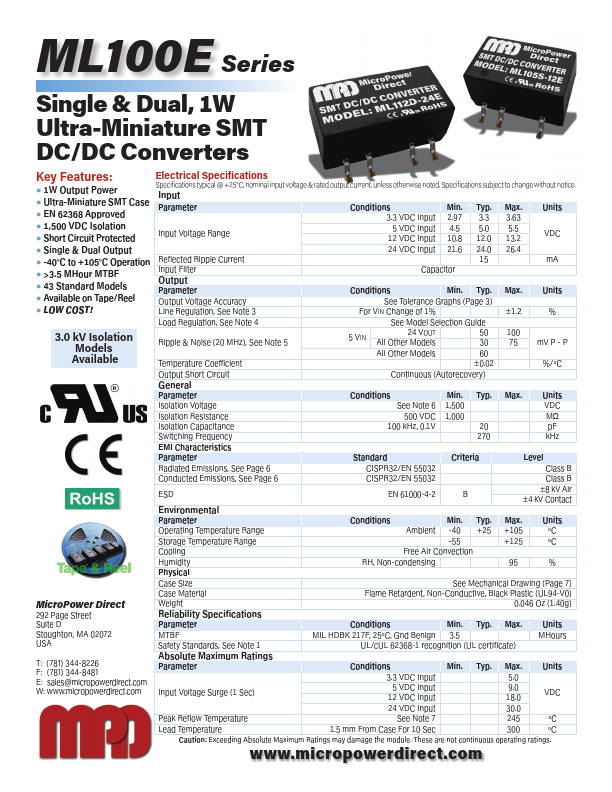

ML100E Series Single & Dual, 1W Ultra-Miniature SMT DC/DC Converters.

Electrical Specifications.
1W Output Power.
Ultra-Miniature SMT Case.
EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63.
1,500 VDC Isolation.
Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC.
Single & Dual Outp.

Part Number	Description
ML103S-03EI	1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML103S-05E	1W Ultra-Miniature SMT DC/DC Converters
ML103S-05EI	1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML103S-09E	1W Ultra-Miniature SMT DC/DC Converters
ML103S-12E	1W Ultra-Miniature SMT DC/DC Converters
ML103S-12EI	1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML103S-15E	1W Ultra-Miniature SMT DC/DC Converters
ML103S-24E	1W Ultra-Miniature SMT DC/DC Converters
ML103D-05E	1W Ultra-Miniature SMT DC/DC Converters
ML103D-12E	1W Ultra-Miniature SMT DC/DC Converters
