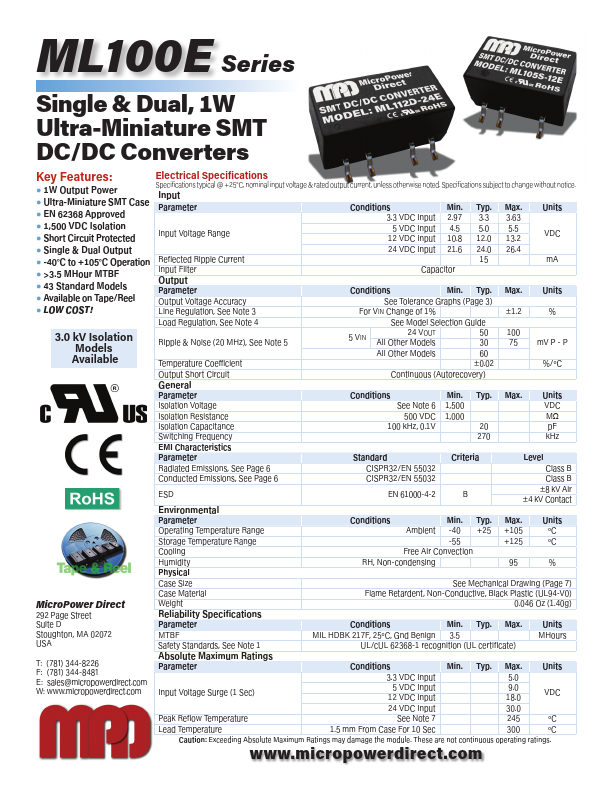

ML103S-09E Datasheet 1W Ultra-Miniature SMT DC/DC Converters

Manufacturer: MicroPower Direct

Download the ML103S-09E datasheet PDF. This datasheet also includes the ML103S-03E variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML103S-03E-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML103S-09E
Manufacturer MicroPower Direct
File Size 4.13 MB
Description 1W Ultra-Miniature SMT DC/DC Converters
Download ML103S-09E Download (PDF)

Overview

ML100E Series Single & Dual, 1W Ultra-Miniature SMT DC/DC Converters.

Key Features

  • Electrical Specifications.
  • 1W Output Power.
  • Ultra-Miniature SMT Case.
  • EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63.
  • 1,500 VDC Isolation.
  • Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC.
  • Single & Dual Outp.
