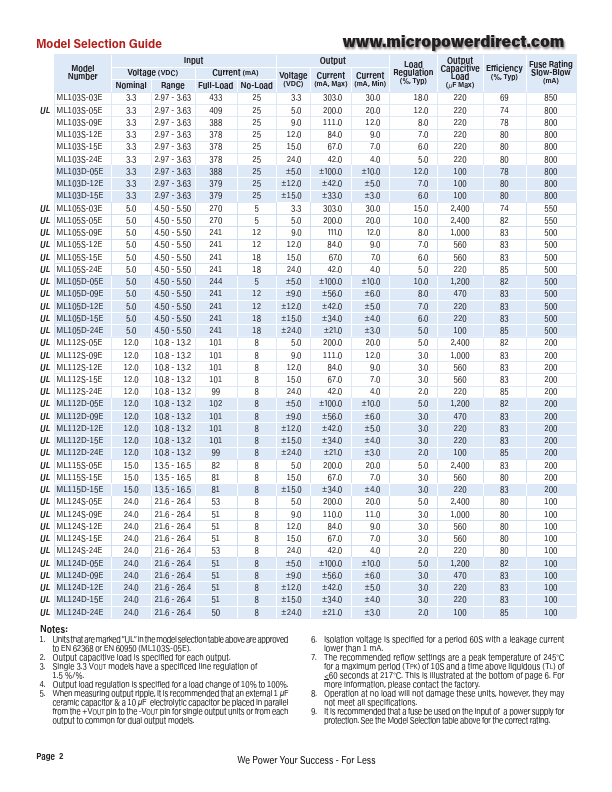

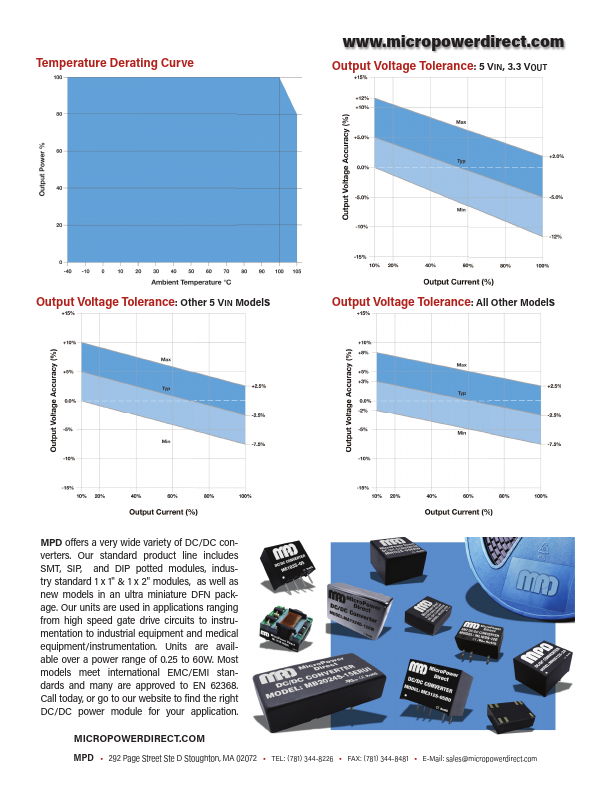

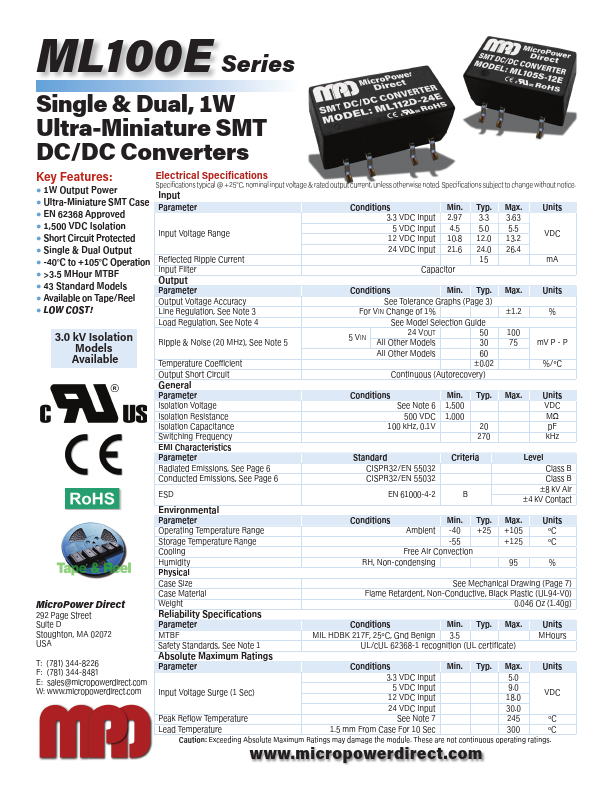

ML100E Series Single & Dual, 1W Ultra-Miniature SMT DC/DC Converters Key Features: Electrical Specifications ● 1W Output Power ● Ultra-Miniature SMT Case ● EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 ● 1,500 VDC Isolation ● Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC ● Single & Dual Output 24 VDC Input 21.6 24.0 26.4 ● -40°C to +105°C Operation ● >3.
