ML105D-15E - 1W Ultra-Miniature SMT DC/DC Converters

Download the ML105D-15E datasheet PDF. This datasheet also covers the ML103S-03E variant, as both devices belong to the same 1w ultra-miniature smt dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

Features

  • Electrical Specifications.
  • 1W Output Power.
  • Ultra-Miniature SMT Case.
  • EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63.
  • 1,500 VDC Isolation.
  • Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC.
  • Single & Dual Outp.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML103S-03E-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML105D-15E
Manufacturer MicroPower Direct
File Size 4.13 MB
Description 1W Ultra-Miniature SMT DC/DC Converters
Datasheet download datasheet ML105D-15E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ML1000605D HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER IRF
ML1001 Static LCD COG Driver Minilogic Device
ML100PS2PG PRESSURE SENSORS Honeywell
ML1012R a high power AlGaInP semiconductor laser Mitsubishi
ML1013R a high power AlGaInP semiconductor laser Mitsubishi

Other Datasheets by MicroPower Direct

Part Number Description
ML105D-15EI 1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML105D-12E 1W Ultra-Miniature SMT DC/DC Converters
ML105D-12EI 1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML105D-05E 1W Ultra-Miniature SMT DC/DC Converters
ML105D-05EI 1W High Isolation Ultra-Miniature SMT DC/DC Converters

Full PDF Text Transcription

Click to expand full text

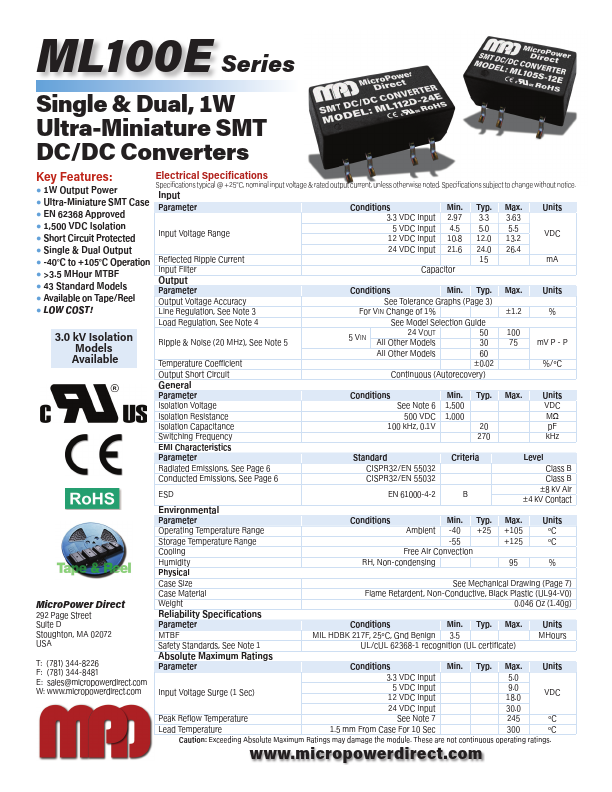

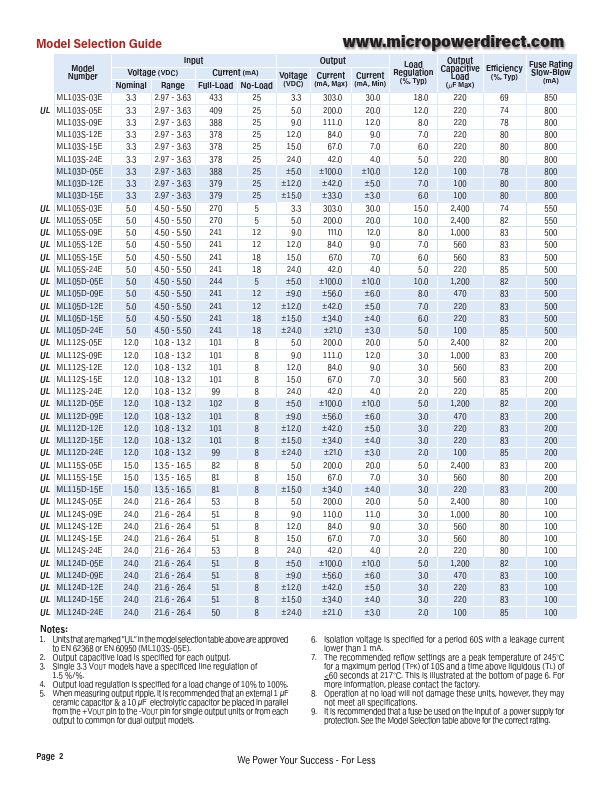

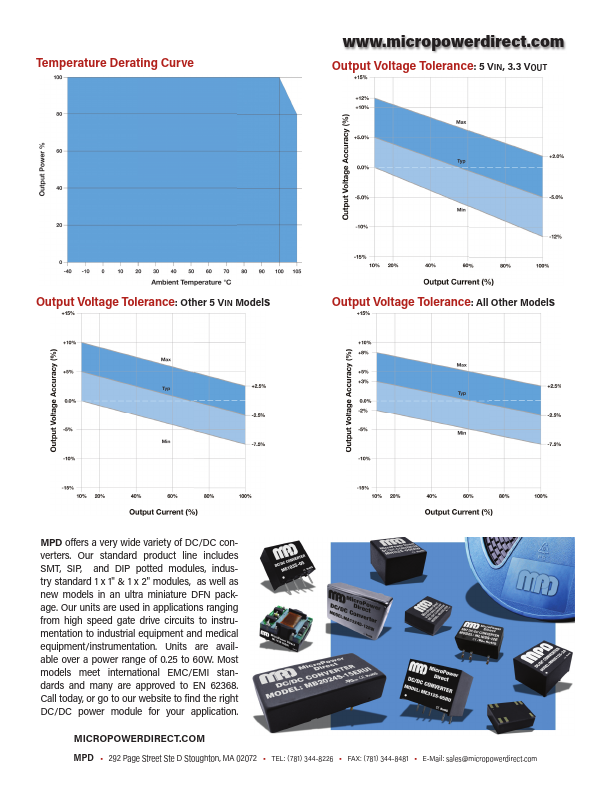

ML100E Series Single & Dual, 1W Ultra-Miniature SMT DC/DC Converters Key Features: Electrical Specifications ● 1W Output Power ● Ultra-Miniature SMT Case ● EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63 ● 1,500 VDC Isolation ● Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC ● Single & Dual Output 24 VDC Input 21.6 24.0 26.4 ● -40°C to +105°C Operation ● >3.
