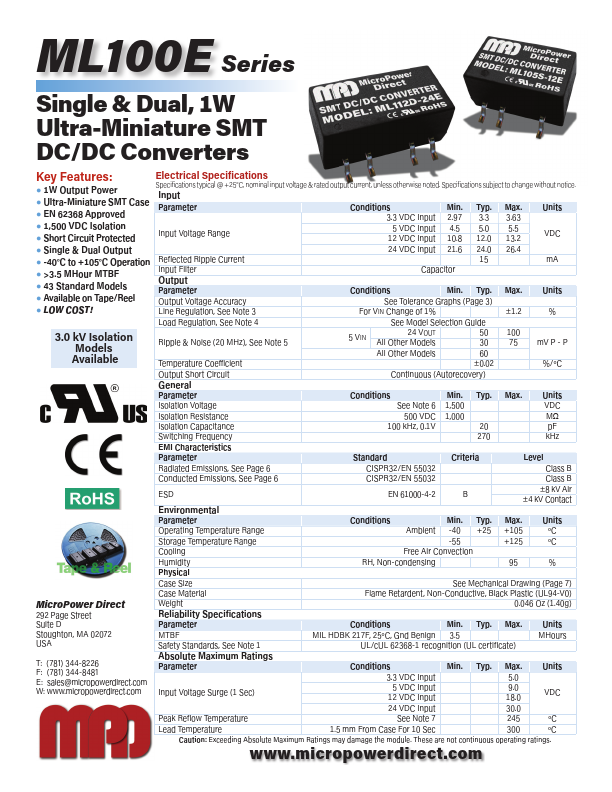

ML105S-05E
Features
:
Electrical Specifications
- 1W Output Power
- Ultra-Miniature SMT Case
- EN 62368 Approved
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Input
Parameter
Conditions
Min. Typ. Max. Units
3.3 VDC Input 2.97 3.3 3.63
- 1,500 VDC Isolation
- Short Circuit Protected
Input Voltage Range
5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2
- Single & Dual Output
24 VDC Input 21.6 24.0 26.4
- -40°C to +105°C Operation
- >3.5 MHour MTBF
- 43 Standard Models
- Available on Tape/Reel
- LOW COST!
Reflected Ripple Current Input Filter Output Parameter Output Voltage Accuracy Line Regulation, See Note 3
15 Capacitor
Conditions
Min. Typ.
See Tolerance Graphs (Page 3)
For VIN Change of 1%
Max. ±1.2 m A
Units %
Load Regulation, See Note 4
See Model Selection Guide
3.0 k V Isolation Models Available
Ripple & Noise (20 MHz), See Note 5 Temperature Coefficient
5...
