ML112D-15EI Datasheet 1W High Isolation Ultra-Miniature SMT DC/DC Converters

Manufacturer: MicroPower Direct

Download the ML112D-15EI datasheet PDF. This datasheet also includes the ML103S-03EI variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML103S-03EI-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML112D-15EI
Manufacturer MicroPower Direct
File Size 2.17 MB
Description 1W High Isolation Ultra-Miniature SMT DC/DC Converters
Download ML112D-15EI Download (PDF)

Overview

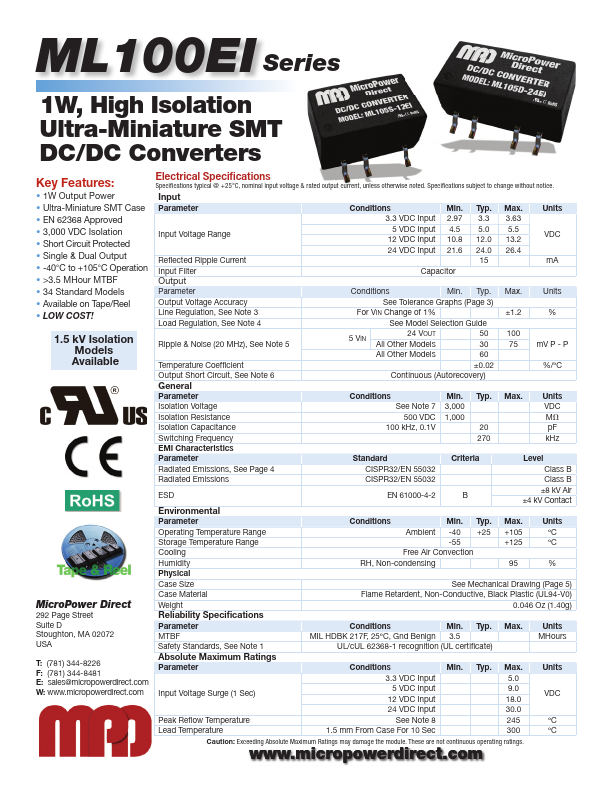

ML100EI Series 1W, High Isolation Ultra-Miniature SMT DC/DC Converters.

Key Features

  • Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
  • 1W Output Power Input.
  • Ultra-Miniature SMT Case Parameter Conditions Min. Typ. Max. Units.
  • EN 62368 Approved.
  • 3,000 VDC Isolation.
  • Short Circuit Protected.
  • Single & Dual Output.
  • -40°C to +105°C Operation.
  • >3.5 MHour MTBF.
  • 34 Standard Mo.
