ML112S-15EI - 1W High Isolation Ultra-Miniature SMT DC/DC Converters

Download the ML112S-15EI datasheet PDF. This datasheet also covers the ML103S-03EI variant, as both devices belong to the same 1w high isolation ultra-miniature smt dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

Features

  • Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
  • 1W Output Power Input.
  • Ultra-Miniature SMT Case Parameter Conditions Min. Typ. Max. Units.
  • EN 62368 Approved.
  • 3,000 VDC Isolation.
  • Short Circuit Protected.
  • Single & Dual Output.
  • -40°C to +105°C Operation.
  • >3.5 MHour MTBF.
  • 34 Standard Mo.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML103S-03EI-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML112S-15EI
Manufacturer MicroPower Direct
File Size 2.17 MB
Description 1W High Isolation Ultra-Miniature SMT DC/DC Converters
Datasheet download datasheet ML112S-15EI Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ML1000605D HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER IRF
ML1001 Static LCD COG Driver Minilogic Device
ML100PS2PG PRESSURE SENSORS Honeywell
ML1012R a high power AlGaInP semiconductor laser Mitsubishi
ML1013R a high power AlGaInP semiconductor laser Mitsubishi

Other Datasheets by MicroPower Direct

Part Number Description
ML112S-15E 1W Ultra-Miniature SMT DC/DC Converters
ML112S-12E 1W Ultra-Miniature SMT DC/DC Converters
ML112S-12EI 1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML112S-03EI 1W High Isolation Ultra-Miniature SMT DC/DC Converters
ML112S-05E 1W Ultra-Miniature SMT DC/DC Converters

Full PDF Text Transcription

Click to expand full text

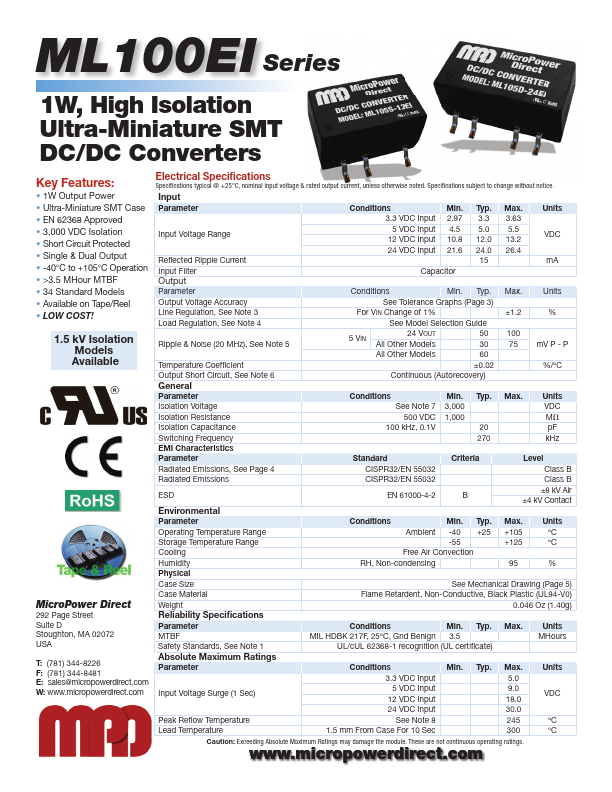

ML100EI Series 1W, High Isolation Ultra-Miniature SMT DC/DC Converters Key Features: Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. • 1W Output Power Input • Ultra-Miniature SMT Case Parameter Conditions Min. Typ. Max. Units • EN 62368 Approved • 3,000 VDC Isolation • Short Circuit Protected • Single & Dual Output • -40°C to +105°C Operation • >3.5 MHour MTBF • 34 Standard Models Input Voltage Range Reflected Ripple Current Input Filter Output Parameter 3.3 VDC Input 2.97 3.3 3.63 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 24 VDC Input 21.6 24.0 26.4 15 Capacitor Conditions Min. Typ. Max.
