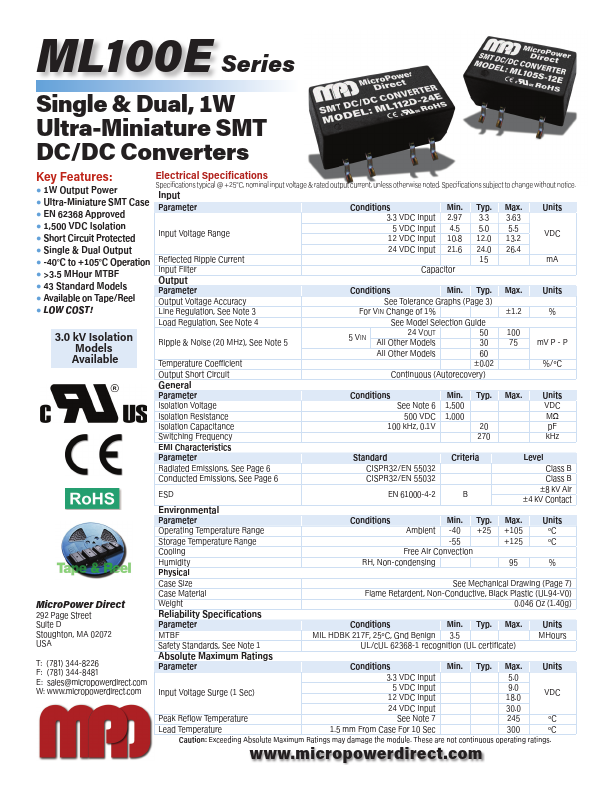

MicroPower Direct ML112S-24E
1W Ultra-Miniature SMT DC/DC Converters
| Part No. | ML112S-24E |
|---|---|
| Datasheet | ML112S-24E Download |
| Manufacturer |  MicroPower Direct |
| Description | 1W Ultra-Miniature SMT DC/DC Converters |
| Buy | Stock & Price |
FEATURES
:ELECTRICAL SPECIFICATIONS
● 1W Output Power● Ultra-Miniature SMT Case
● EN 62368 Approved Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units 3.3 VDC Input 2.97 3.3 3.63
● 1,500 VDC Isolation
● Short Circuit Protected Input Voltage Range 5 VDC Input 4.5 5.0 5.5 12 VDC Input 10.8 12.0 13.2 VDC
● Single & Dual Output 24 VDC Input 21.6 24.0 26.4
● -40°C to +105°C Operation
● >3.5 MHour MTBF
● 43 Standard Models
● Available on Tape/Reel

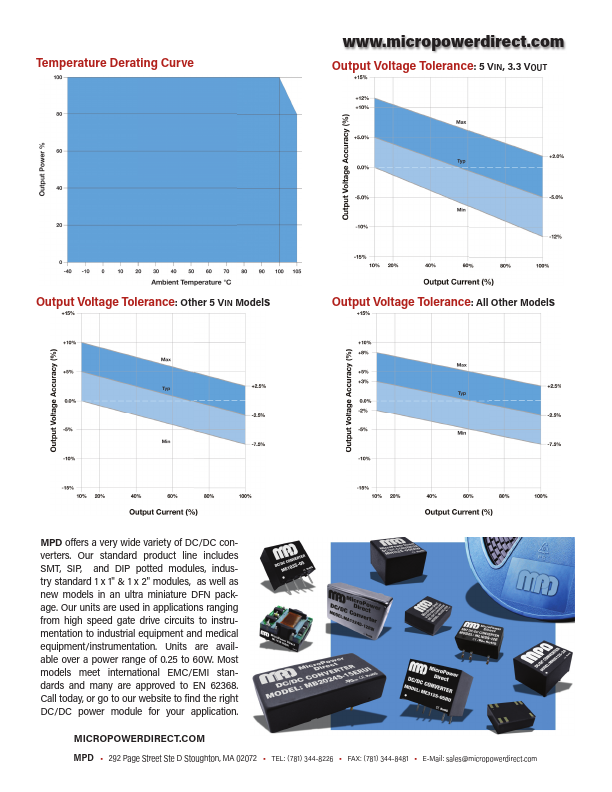

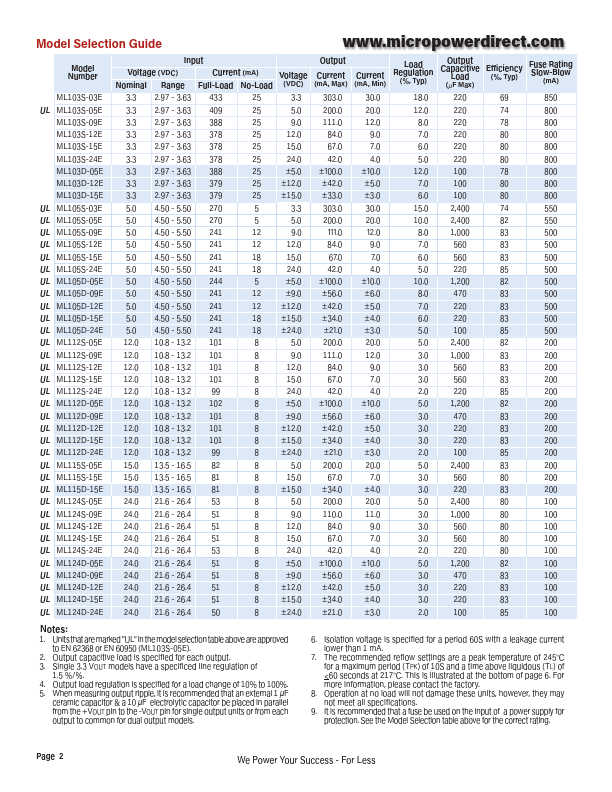

● LOW COST! Reflected Ripple Current Input Filter Output Parameter Output Voltage Accuracy Line Regulation, See Note 3 15 Capacitor Conditions Min. Typ. See Tolerance Graphs (Page 3) For VIN Change of 1% Max. ±1.2 mA Units % Load Regulation, See Note 4 See Model Selection Guide 3.0 kV Isolation Models Available Ripple & Noise (20 MHz), See Note 5 Temperature Coefficient 5 VIN 24 VOUT All Other Models All Other Models 50 100 30 75 60 ±0.02 mV P - P %/ºC Output Short Circuit Continuous (Autorecovery) General Parameter Conditions Min.
