MLSR124S - POL Switching Regulators

Download the MLSR124S datasheet PDF. This datasheet also covers the MLSR105S variant, as both devices belong to the same pol switching regulators family and are provided as variant models within a single manufacturer datasheet.

Features

  • Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input.
  • Efficiency to 96%.
  • 1.0A Output Current.
  • Meets EN 62368.
  • Miniature SMT Construction.
  • Short Circuit Protected.

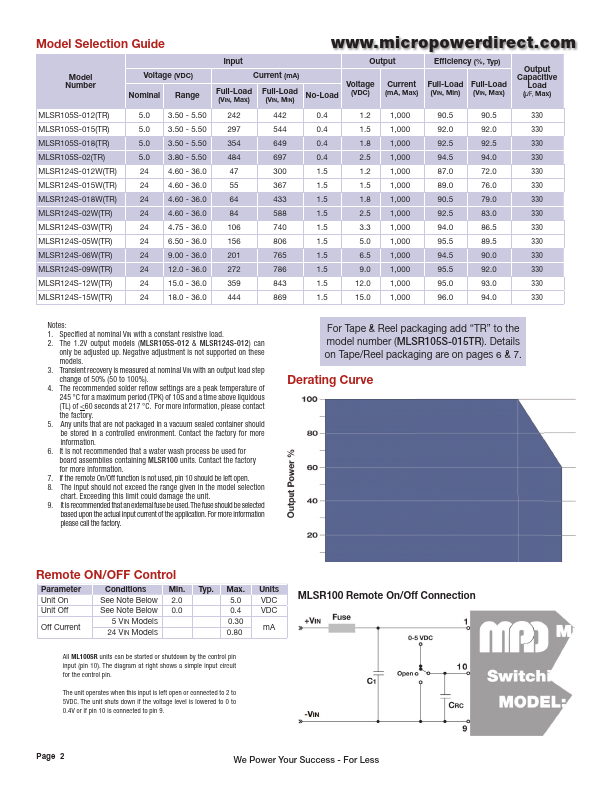

  • Low No-Load Input Current Parameter Input Voltage Range Start Up Time Input Filter Input Reflected Ripple Current Conditions Min. Typ. Max. See Model Selection Guide on Page 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MLSR105S-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MLSR124S
Manufacturer MicroPower Direct
File Size 1.58 MB
Description POL Switching Regulators
Datasheet download datasheet MLSR124S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MLS-6402-A300-A-F250 Transmitter di-soric
MLS161B 8-Bit I/O Type Micro-Controller Megawin
MLS64-02-A300-A-F250 Transmitter di-soric
MLS6402-A300-A-F250 Transmitter di-soric
MLS900B (MLS9xxB) 8-bit I/O type micro-controller Megawin Technology

Other Datasheets by MicroPower Direct

Part Number Description
MLSR105S POL Switching Regulators
MLSR7805 0.5A POL Switching Regulators

Full PDF Text Transcription

Click to expand full text
MLSR100 Series High Efficiency, 1.0A Surface Mount, POL Switching Regulators Electrical Specifications Key Features: Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input • Efficiency to 96% • 1.0A Output Current • Meets EN 62368 • Miniature SMT Construction • Short Circuit Protected • Low No-Load Input Current Parameter Input Voltage Range Start Up Time Input Filter Input Reflected Ripple Current Conditions Min. Typ. Max. See Model Selection Guide on Page 2 See Note 1 5.0 Internal Capacitors 35 Units mS mA P - P • -40°C to +105°C Operation Output • Wide Input Range Parameter Conditions Min. Typ. Max. Units • Adjustable Output Voltage Output Voltage Accuracy ±2.
