MPL-03SC - Open Frame AC/DC Power Supplies

Features

  • 3W Output Power Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input.
  • 85-305 VAC Input.
  • 3,000 VAC Isolation.
  • Compact Size.
  • Accepts AC or DC input.
  • -40°C to +85°C Temp Range.
  • Meets EN 55032 B.
  • >1000 kHour MTBF.
  • Reinforced Insulation Parameter Input Voltage Range Input Frequency Input Current Inrush Current (Cold start).

📥 Download Datasheet

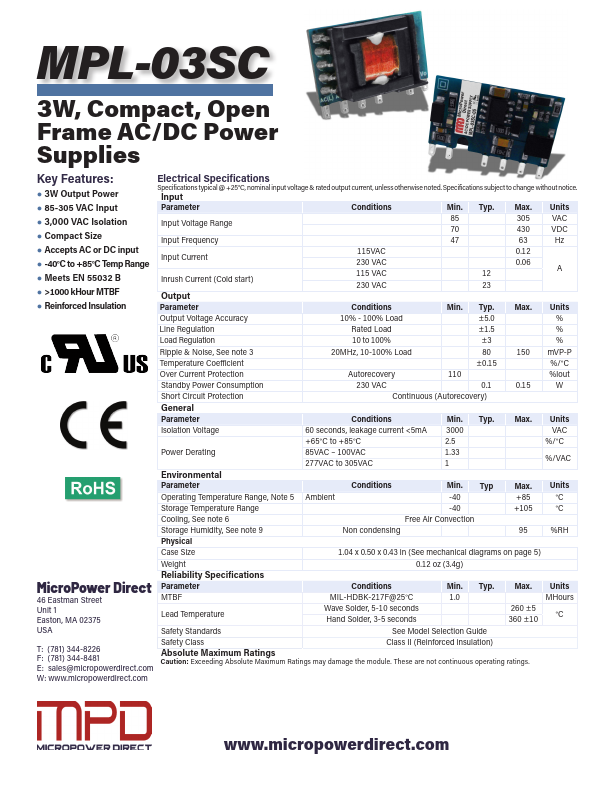

Datasheet preview – MPL-03SC

Datasheet Details

Part number MPL-03SC
Manufacturer MicroPower Direct
File Size 1.39 MB
Description Open Frame AC/DC Power Supplies
Datasheet download datasheet MPL-03SC Datasheet

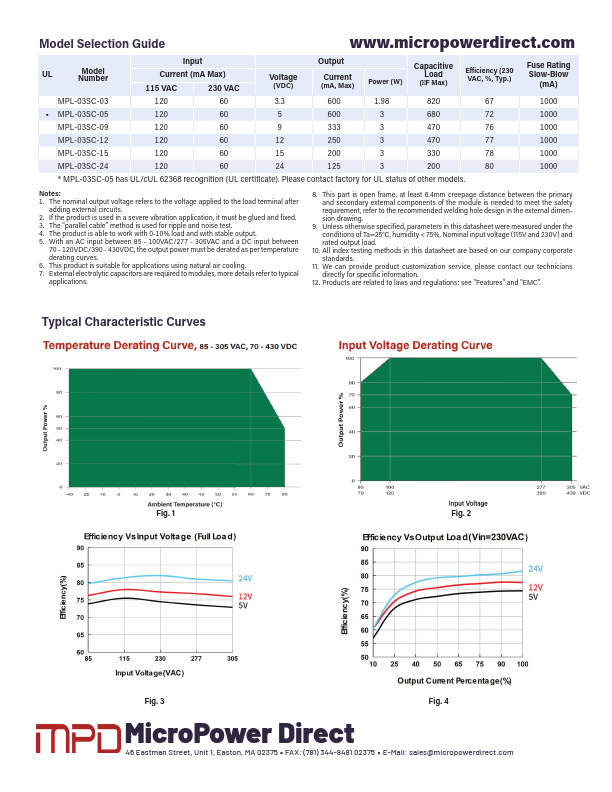

Additional preview pages of the MPL-03SC datasheet.

📁 Similar Datasheet

  • MPL-102S - Silicon Diode (Sanken)
  • MPL-A1510V - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A1520U - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A1530U - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A210V - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A220T - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A230P - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A310F - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A310P - MP-Series Low Inertia Motors (Rockwell)
  • MPL-A320H - MP-Series Low Inertia Motors (Rockwell)
Other Datasheets by MicroPower Direct

    Full PDF Text Transcription

    Click to expand full text
    MPL-03SC 3W, Compact, Open Frame AC/DC Power Supplies Key Features: ● 3W Output Power Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input ● 85-305 VAC Input ● 3,000 VAC Isolation ● Compact Size ● Accepts AC or DC input ● -40°C to +85°C Temp Range ● Meets EN 55032 B ● >1000 kHour MTBF ● Reinforced Insulation Parameter Input Voltage Range Input Frequency Input Current Inrush Current (Cold start) Output Parameter Conditions 115VAC 230 VAC 115 VAC 230 VAC Conditions Min. Typ. 85 70 47 12 23 Min. Typ. Max. 305 430 63 0.12 0.06 Units VAC VDC Hz A Max. Units Output Voltage Accuracy 10% - 100% Load ±5.0 % Line Regulation Rated Load ±1.
