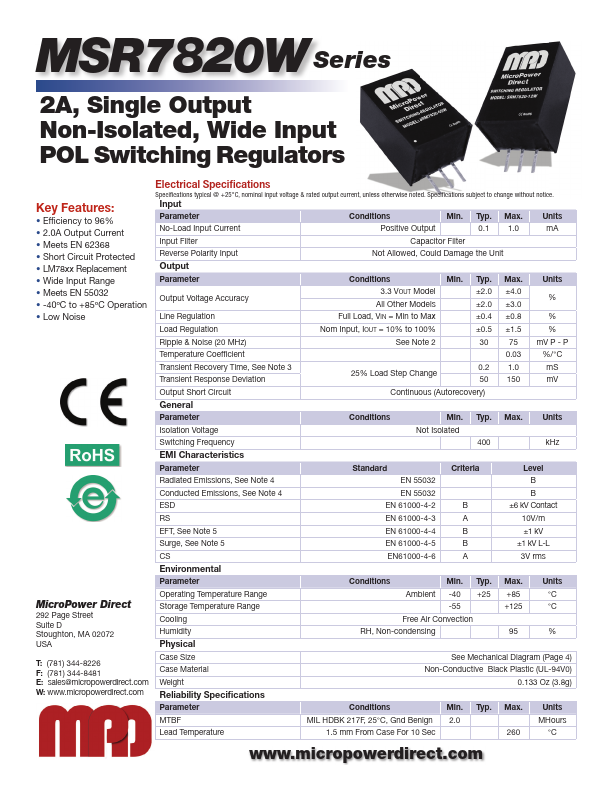

MSR7820W Series 2A, Single Output Non-Isolated, Wide Input POL Switching Regulators Key Features: • Efficiency to 96% • 2.0A Output Current • Meets EN 62368 • Short Circuit Protected • LM78xx Replacement • Wide Input Range • Meets EN 55032 • -40ºC to +85ºC Operation Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units No-Load Input Current Positive Output 0.1 1.0 mA Input Filter Capacitor Filter Reverse Polarity Input Not Allowed, Could Damage the Unit Output Parameter Conditions Min. Typ. Max. Units Output Voltage Accuracy 3.3 VOUT Model All Other Models ±2.0 ±4.0 % ±2.0 ±3.
