Part number MSR7820-05W
Manufacturer MicroPower Direct
File Size 2.02 MB
Description POL Switching Regulators
Download MSR7820-05W Download (PDF)

Overview

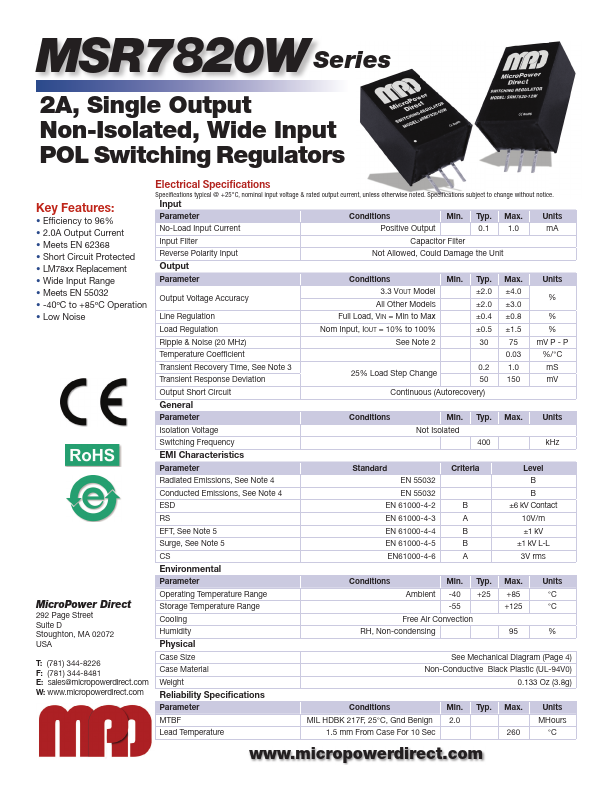

MSR7820W Series 2A, Single Output Non-Isolated, Wide Input POL Switching Regulators.

Key Features

  • Efficiency to 96%.
  • 2.0A Output Current.
  • Meets EN 62368.
  • Short Circuit Protected.
  • LM78xx Replacement.
  • Wide Input Range.
  • Meets EN 55032.

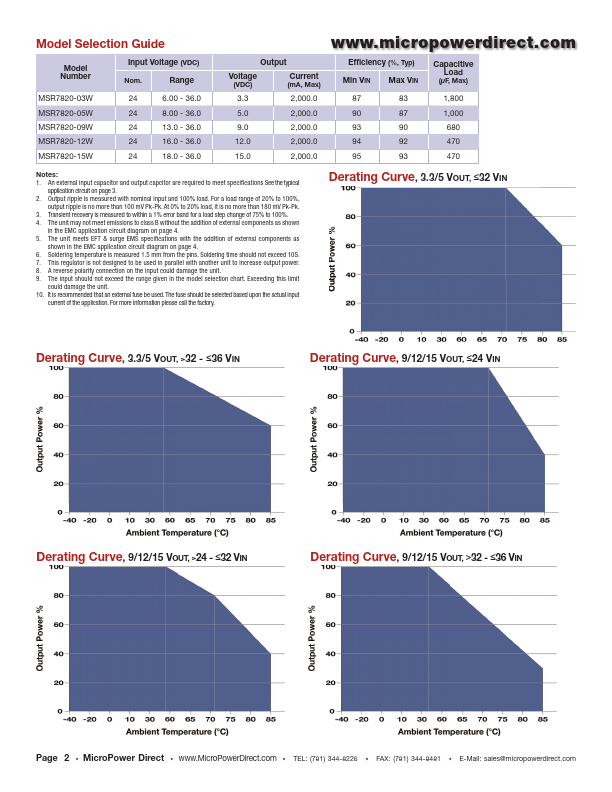

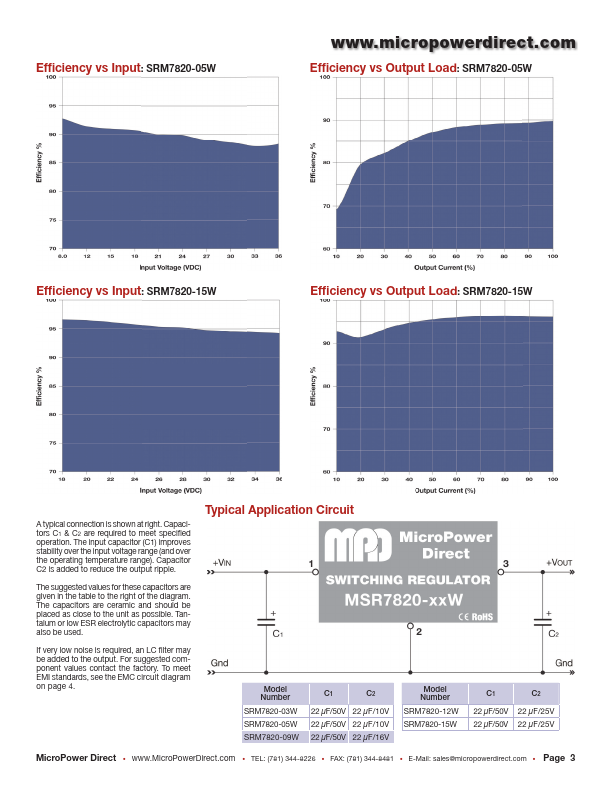

  • -40ºC to +85ºC Operation Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units No-Load Input Current Positive Output.
