MSR7820-09W - POL Switching Regulators

Download the MSR7820-09W datasheet PDF. This datasheet also covers the MSR7820-03W variant, as both devices belong to the same pol switching regulators family and are provided as variant models within a single manufacturer datasheet.

Features

  • Efficiency to 96%.
  • 2.0A Output Current.
  • Meets EN 62368.
  • Short Circuit Protected.
  • LM78xx Replacement.
  • Wide Input Range.
  • Meets EN 55032.
  • -40ºC to +85ºC Operation Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units No-Load Input Current Positive Output.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSR7820-03W-MicroPowerDirect.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MSR7820-09W
Manufacturer MicroPower Direct
File Size 2.02 MB
Description POL Switching Regulators
Datasheet download datasheet MSR7820-09W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSR Miniature Power PCB Relay Tyco Electronics
MSR003 HYBRID RECEIVER Filtronic Compound Semiconductors
MSR004 HYBRID RECEIVER Filtronic Compound Semiconductors
MSR0860AE2 Superfast High Voltage Rectifiers CYStech
MSR0860AF2 Super fast Plastic Rectifiers CYStech

Other Datasheets by MicroPower Direct

Part Number Description
MSR7820-03W POL Switching Regulators
MSR7820-05W POL Switching Regulators
MSR7820-12W POL Switching Regulators
MSR7820-15W POL Switching Regulators

Full PDF Text Transcription

Click to expand full text

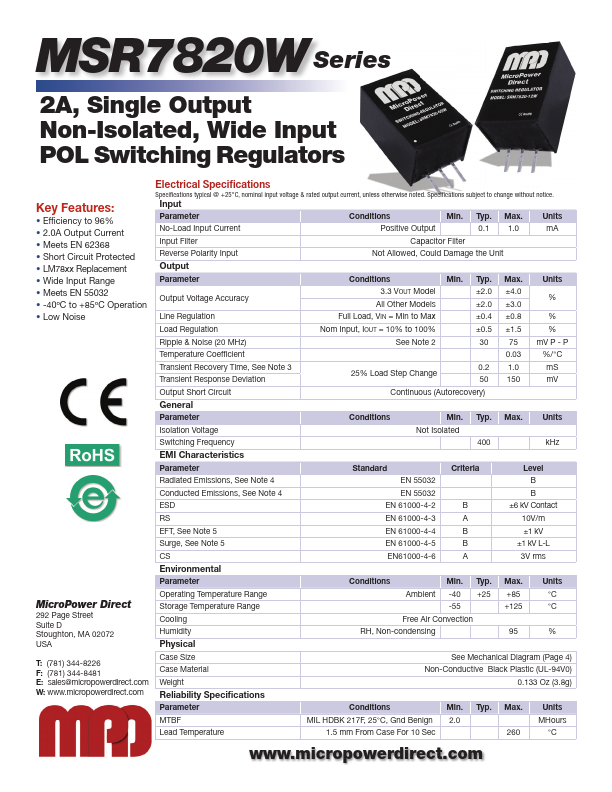

MSR7820W Series 2A, Single Output Non-Isolated, Wide Input POL Switching Regulators Key Features: • Efficiency to 96% • 2.0A Output Current • Meets EN 62368 • Short Circuit Protected • LM78xx Replacement • Wide Input Range • Meets EN 55032 • -40ºC to +85ºC Operation Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice. Input Parameter Conditions Min. Typ. Max. Units No-Load Input Current Positive Output 0.1 1.0 mA Input Filter Capacitor Filter Reverse Polarity Input Not Allowed, Could Damage the Unit Output Parameter Conditions Min. Typ. Max. Units Output Voltage Accuracy 3.3 VOUT Model All Other Models ±2.0 ±4.0 % ±2.0 ±3.
