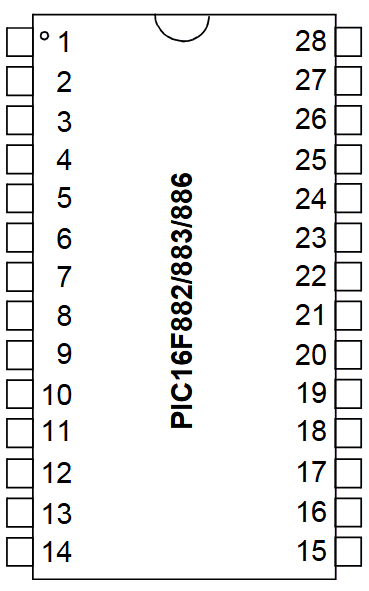

PIC16F882/883/884/886/887
28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers
High-Performance RISC CPU
- Only 35 Instructions to Learn:
- All single-cycle instructions except branches
- Operating Speed:
- DC
- 20 MHz oscillator/clock input
- DC
- 200 ns instruction cycle
- Interrupt Capability
- 8-Level Deep Hardware Stack
- Direct, Indirect and Relative Addressing modes
Special Microcontroller Features
- Precision Internal Oscillator:
- Factory calibrated to ±1%
- Software selectable frequency range of 8 MHz to 31 kHz
- Software tunable
- Two-Speed Start-up mode
- Crystal fail detect for critical applications
- Clock mode switching during operation for power savings
- Power-Saving Sleep mode
- Wide Operating Voltage Range (2.0V-5.5V)
- Industrial and Extended Temperature Range
- Power-on Reset (POR)
- Power-up Timer (PWRT) and Oscillator Start-up
Timer (OST)
- Brown-out Reset (BOR) with Software Control
Option
- Enhanced Low-Current Watchdog Timer (WDT) with On-Chip Oscillator (software selectable nominal 268 seconds with full prescaler) with software enable...
