TC1262 Datasheet PDF - Microchip Technology 500mA Fixed Output CMOS LDO Specs

TC1262 - 500mA Fixed Output CMOS LDO

Datasheet Summary

Description

The TC1262 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator.

Designed specifically for battery-operated systems, the TC1262’s CMOS construction eliminates wasted ground current, significantly extending battery life.

Features

Very Low Dropout Voltage 500mA Output Current High Output Voltage Accuracy Standard or Custom Output Voltages Over Current and Over Temperature Protection Package Type 3-Pin TO-220 Tab is GND 3-Pin DDPAK Front View Tab is GND TC1262 1 2 3 TC1262 1 2 3.

Datasheet Details

Part number	TC1262
Manufacturer	Microchip Technology
File Size	461.98 KB
Description	500mA Fixed Output CMOS LDO
Datasheet	TC1262 Datasheet
Additional preview pages of the TC1262 datasheet.

📁 Similar Datasheet

TC12-11EWA - DOT MATRIX DISPLAY (Kingbright)

TC12.5A4V - Current Transducers (Topstek)

TC1202A - LCD (Winstar)

TC1211 - PWM controller (Zetex)

TC1211LC - ESD Protection Device (CITC)

TC1213 - Low DCR Large Current Inductor (Token)

TC1213A - Low DCR Large Current Inductor (Token)

TC1213B - Low DCR Large Current Inductor (Token)

TC122 - TIRISTORI (M&G Electronic)

TC122 - ARRAY CHIP RESISTORS (Yageo)

Full PDF Text Transcription

Click to expand full text

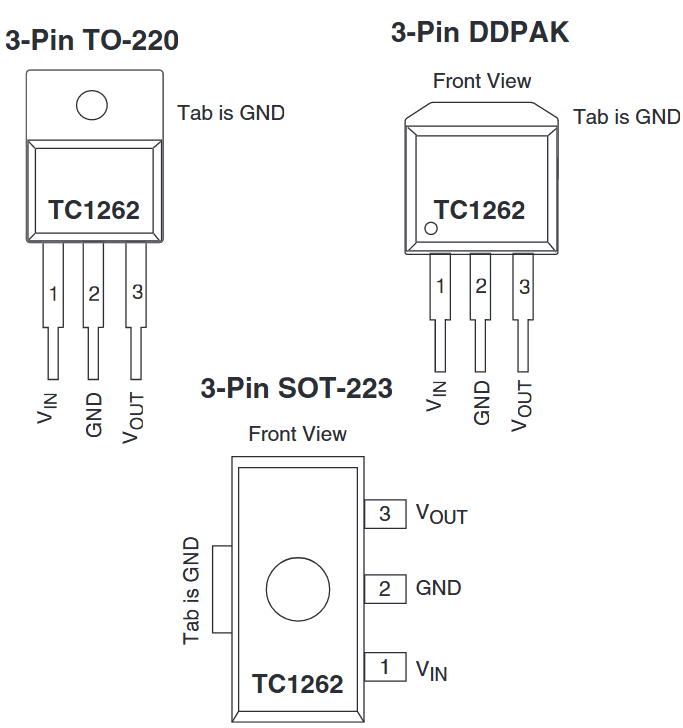

TC1262 500mA Fixed Output CMOS LDO Features • • • • • Very Low Dropout Voltage 500mA Output Current High Output Voltage Accuracy Standard or Custom Output Voltages Over Current and Over Temperature Protection Package Type 3-Pin TO-220 Tab is GND 3-Pin DDPAK Front View Tab is GND TC1262 1 2 3 TC1262 1 2 3 Applications • • • • • • • Battery Operated Systems Portable Computers Medical Instruments Instrumentation Cellular/GSM/PHS Phones Linear Post-Regulators for SMPS Pagers VOUT GND Front View 3 Tab is GND VOUT 2 GND Device Selection Table Part Number TC1262-xxVDB TC1262-xxVAB TC1262-xxVEB Package 3-Pin SOT-223 3-Pin TO-220 3-Pin DDPAK Junction Temp.
