TC4426
Features
:
- High Peak Output Current: 1.5A
- Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
- High Capacitive Load Drive Capability: 1000 p F in
25 ns (typical)
- Short Delay Times: 40 ns (typical)
- Matched Rise and Fall Times
- Low Supply Current:
- With Logic ‘1’ Input
- 4 m A
- With Logic ‘0’ Input
- 400 µA
- Low Output Impedance: 7
- Latch-Up Protected: Withstands 0.5A Reverse Current
- Input Withstands Negative Inputs Up to 5V
- Electrostatic Discharge (ESD) Protected: 2.0 k V
- Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN-S Packages
Applications:
- Switch Mode Power Supplies
- Line Drivers
- Pulse Transformer Drive

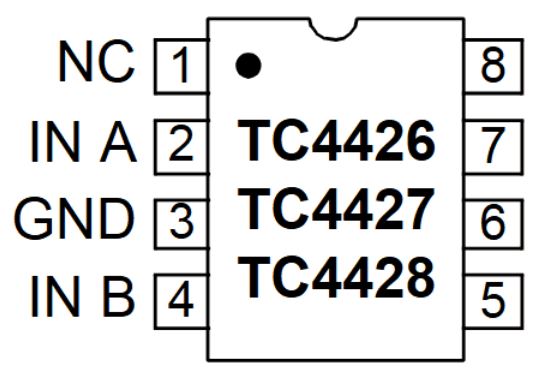

Package Types
8-Pin MSOP/ PDIP/SOIC TC4426 TC4427 TC4428
NC 1
8 NC
IN A 2 TC4426 7 OUT A GND 3 TC4427 6 VDD IN B 4 TC4428 5 OUT B
OUT A VDD OUT B
OUT A VDD OUT B
General Description
:
The TC4426/TC4427/TC4428 are improved versions of the earlier TC426/TC427/TC428 family of MOSFET drivers. The TC4426/TC4427/TC4428 devices have matched rise and fall...
Representative TC4426 image (package may vary by manufacturer)
