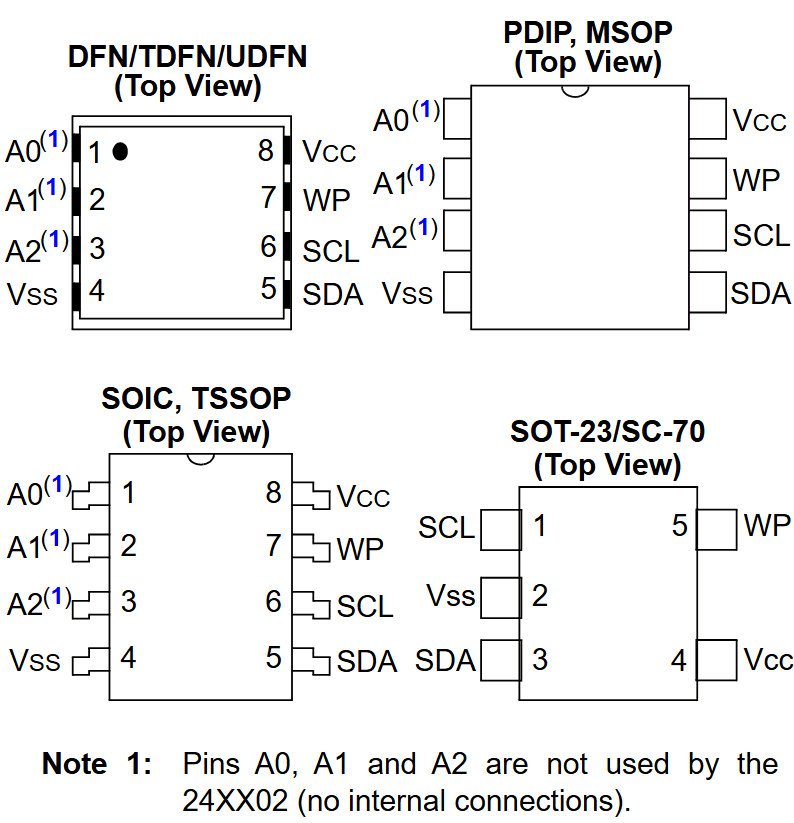

Features - Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices - Low-Power CMOS Technology: - Read current 1 m A, maximum - Standby current 1 µA, maximum (I-temp.) - Two-Wire Serial Interface, I2C patible - Schmitt Trigger Inputs for Noise Suppression - Output Slope Control to Eliminate Ground Bounce - 100 k Hz, 400 k Hz and 1 MHz patibility - Page Write Time: 5 ms, Maximum - Self-Timed Erase/Write Cycle - 8-Byte Page Write Buffer - Hardware Write-Protect - ESD Protection >4,000V - More than 1 Million Erase/Write Cycles - Data Retention >200 Years - Factory Programming Available - Ro HS pliant - Temperature Ranges: - Industrial (I): -40°C to +85°C - Extended (E): -40°C to +125°C - Automotive AEC-Q100 Qualified Packages - 8-Lead DFN, 8-Lead MSOP, 8-Lead PDIP, 5-Lead SC-70, 8-Lead SOIC, 5-Lead SOT-23, 8-Lead TDFN, 8-Lead TSSOP, 8-Lead UDFN and 8-Lead Wettable Flanks UDFN Description The Microchip Technology Inc. 24XX02(1) is a 2-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 256 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 m A, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. Note 1: 24XX02 is used in this document as a generic part number for the 24AA02/24LC02B/24FC02 devices. Package Types DFN/TDFN/UDFN (Top View) A0(1) 1 A1(1) 2 A0(1) 8 VCC 7 WP A1(1) A2(1) 3 6 SCL A2(1) VSS 4 5 SDA VSS PDIP, MSOP (Top...
