24LC02B - 2K I2C Serial EEPROM

Product Overview

Microchip

📥 Download Datasheet

24LC02B 2K I2C Serial EEPROM by Microchip - Datasheet Preview — Datasheet preview – 24LC02B

Datasheet Details

Part number	24LC02B
Manufacturer	Microchip
File Size	0.98 MB
Description	2K I2C Serial EEPROM
Datasheet	24LC02B Datasheet

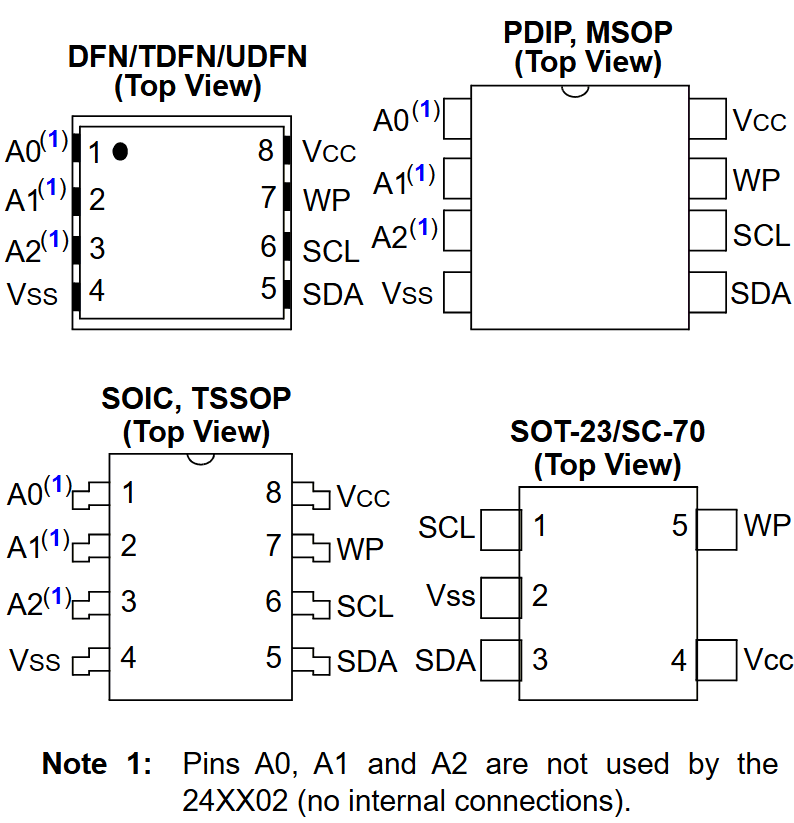

Additional preview pages of the 24LC02B datasheet.

Product details

Description

The Microchip Technology Inc.

Features

Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices.
Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp. ).
Two-Wire Serial Interface, I2C Compatible.
Schmitt Trigger Inputs for Noise Suppression.
Output Slope Control to Eliminate Ground Bounce.
100 kHz, 400 kHz and 1 MHz Compatibility.
Page Write Time: 5 ms, Maximum.
Self-Timed Erase/.
