AT24C256C Datasheet 256?kbit I2c Automotive Temperature Serial Eeprom

Manufacturer: Microchip Technology

Overview: AT24C256C I²C-patible (Two-Wire) Serial EEPROM 256‑Kbit (32,768 x.

General Description

s......................................................................................................................................

5 2.1.

Device Address Inputs (A0, A1, A2).............................................................................................5 2.2.

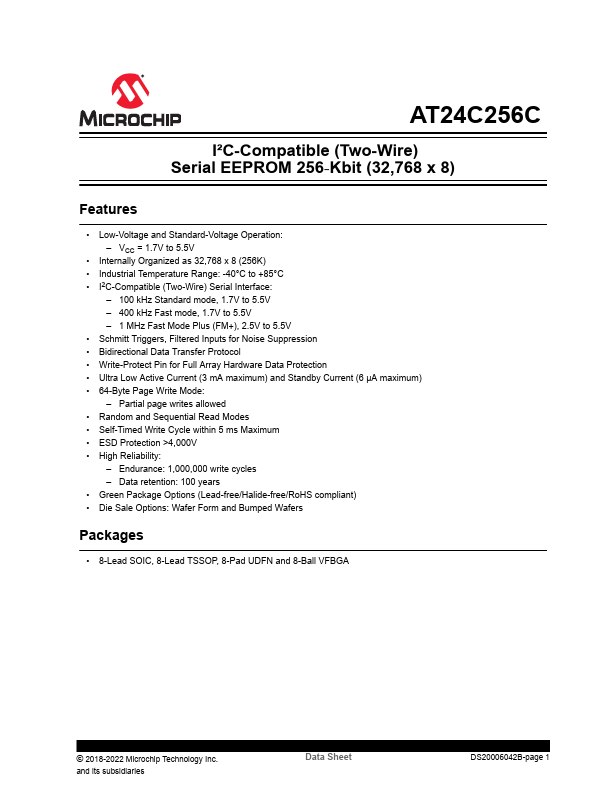

Key Features

  • Low-Voltage and Standard-Voltage Operation:.
  • VCC = 1.7V to 5.5V.
  • Internally Organized as 32,768 x 8 (256K).
  • Industrial Temperature Range: -40°C to +85°C.
  • I2C-Compatible (Two-Wire) Serial Interface:.
  • 100 kHz Standard mode, 1.7V to 5.5V.
  • 400 kHz Fast mode, 1.7V to 5.5V.
  • 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V.
  • Schmitt Triggers, Filtered Inputs for Noise Suppression.
  • Bidirectional Data Transfer Protocol.
