LAN8670 - 10BASE-T1S Ethernet PHY Transceiver

Description

The LAN8670/1/2 is a high-performance 10BASE-T1S

single-pair Ethernet PHY transceiver for 10 Mbit/s halfduplex networking over a single pair of conductors.

Low power 10BASE-T1S PHY operation

📥 Download Datasheet

Datasheet Details

Part number LAN8670
Manufacturer Microchip
File Size 2.51 MB
Description 10BASE-T1S Ethernet PHY Transceiver
Datasheet download datasheet LAN8670 Datasheet

📁 Similar Datasheet

  • LAN8187 - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC Corporation)
  • LAN8187I - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC Corporation)
  • LAN83C180 - 10/100 Fast Ethernet PHY Transceiver (SMSC Corporation)
  • LAN83C185 - High Performance Single Chip Low Power 10/100 Ethernet Physical Layer Transceiver (SMSC Corporation)
  • LAN8700 - ESD Protected MII/RMII Fast-Ethernet PHY (SMSC)
  • LAN8710A - Small Footprint MII/RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8710Ai - Small Footprint MII/RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8720 - Small Footprint RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN8720I - Small Footprint RMII 10/100 Ethernet Transceiver (SMSC)
  • LAN0019-01 - SMARTDAA V.90 LOW PROFILE TRANSFORMER (ETC)
Other Datasheets by Microchip
  • LAN8671 - 10BASE-T1S Ethernet PHY Transceiver
  • LAN8672 - 10BASE-T1S Ethernet PHY Transceiver
  • LAN8700 - MII/RMII 10/100 Ethernet Transceiver
  • LAN8700i - MII/RMII 10/100 Ethernet Transceiver
  • LAN8710A - Small Footprint MII/RMII 10/100 Ethernet Transceiver
  • LAN8710Ai - Small Footprint MII/RMII 10/100 Ethernet Transceiver
  • LAN8720A - Small Footprint RMII 10/100 Ethernet Transceiver
  • LAN8720AI - Small Footprint RMII 10/100 Ethernet Transceiver

Full PDF Text Transcription

Click to expand full text

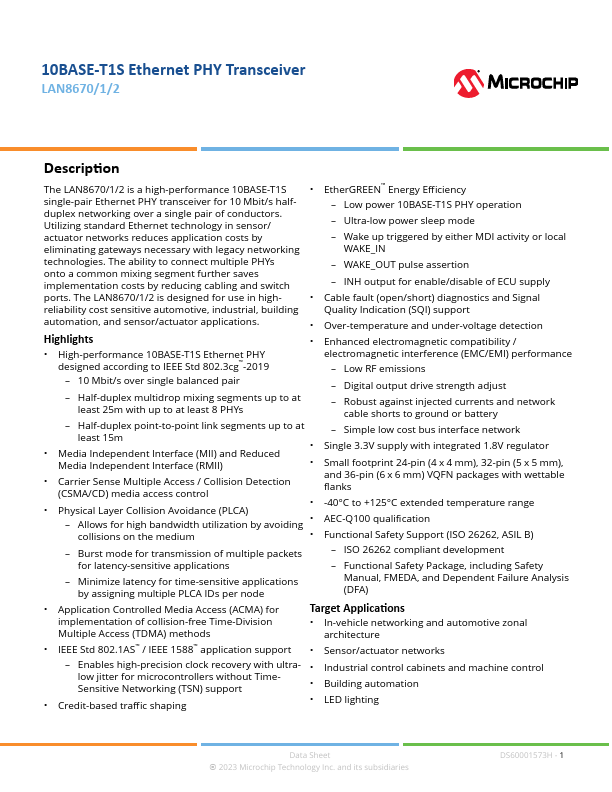

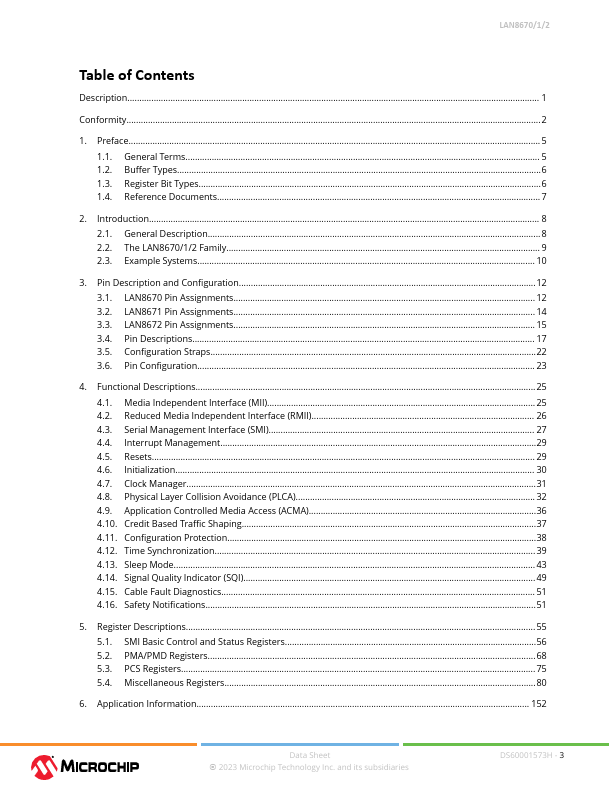

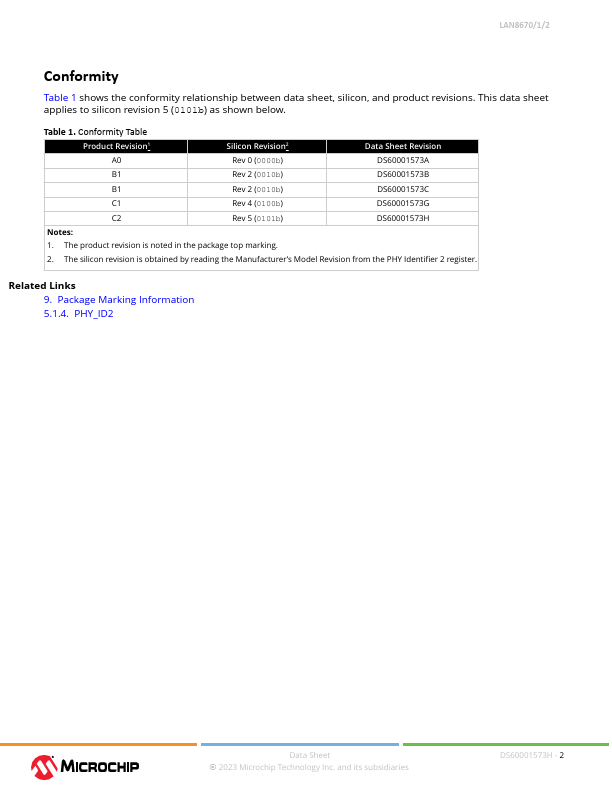

10BASE-T1S Ethernet PHY Transceiver LAN8670/1/2 Description The LAN8670/1/2 is a high-performance 10BASE-T1S • EtherGREEN™ Energy Efficiency single-pair Ethernet PHY transceiver for 10 Mbit/s halfduplex networking over a single pair of conductors. Utilizing standard Ethernet technology in sensor/ – Low power 10BASE-T1S PHY operation – Ultra-low power sleep mode actuator networks reduces application costs by – Wake up triggered by either MDI activity or local eliminating gateways necessary with legacy networking WAKE_IN technologies. The ability to connect multiple PHYs onto a common mixing segment further saves implementation costs by reducing cabling and switch – WAKE_OUT pulse assertion – INH output for enable/disable of ECU supply ports.
