LE50-28
Features

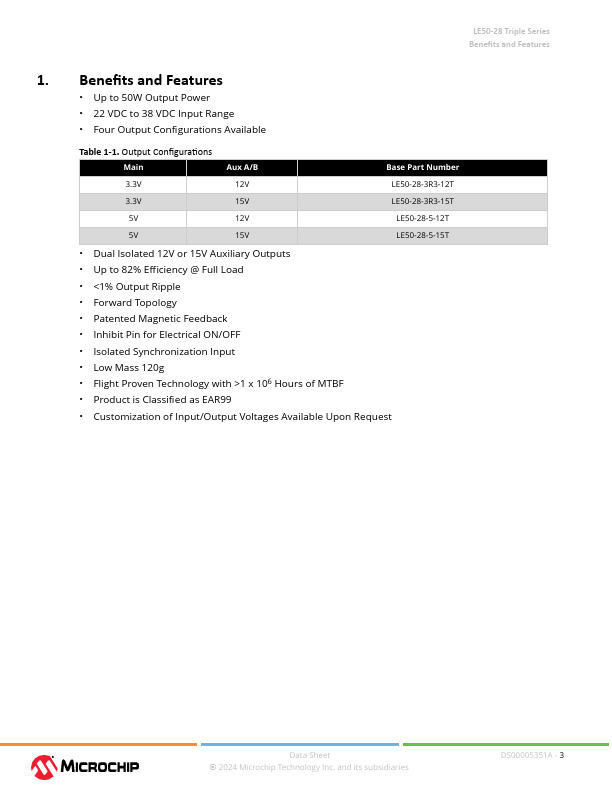

1. Benefits and Features
- Up to 50W Output Power
- 22 VDC to 38 VDC Input Range
- Four Output Configurations Available
Table 1-1. Output Configurations
Main
Aux A/B
Base Part Number
3.3V
12V
LE50-28-3R3-12T
3.3V
15V
LE50-28-3R3-15T
5V
12V
LE50-28-5-12T
5V
15V
LE50-28-5-15T
- Dual Isolated 12V or 15V Auxiliary Outputs
- Up to 82% Efficiency @ Full Load
- <1% Output Ripple
- Forward Topology
- Patented Magnetic Feedback
- Inhibit Pin for Electrical ON/OFF
- Isolated Synchronization Input
- Low Mass 120g
- Flight Proven Technology with >1 x 106 Hours of MTBF
- Product is Classified as EAR99
- Customization of Input/Output Voltages Available Upon Request
Data Sheet
© 2024 Microchip Technology Inc. and its subsidiaries
DS00005351A
- 3
LE50-28 Triple Series Radiation Performance

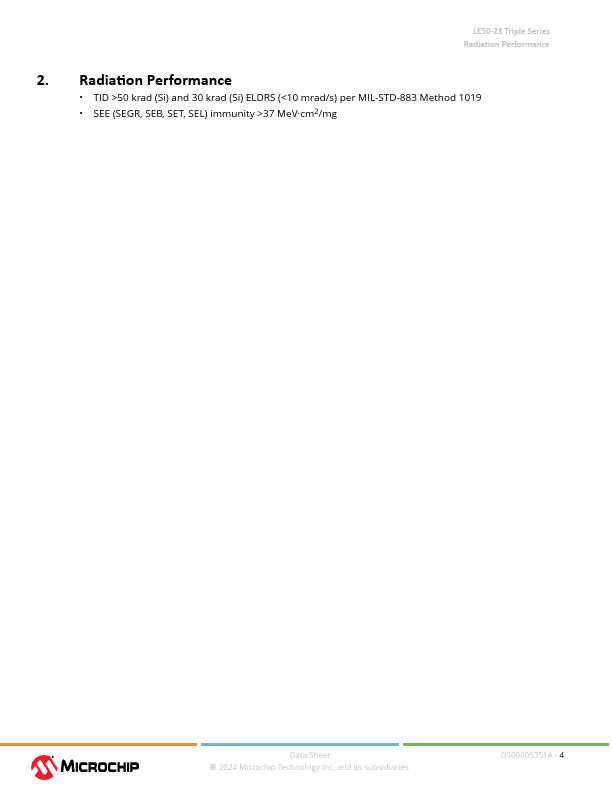

2. Radiation Performance
- TID >50 krad (Si) and 30 krad (Si) ELDRS (<10 mrad/s) per MIL-STD-883 Method 1019
- SEE (SEGR, SEB, SET, SEL) immunity >37 Me V-...
