MCP6542
MCP6542 is Push-Pull Output Sub-Microamp Comparators manufactured by Microchip Technology.
- Part of the MCP6541R comparator family.
- Part of the MCP6541R comparator family.
Features
- Low Quiescent Current: 600 n A/parator (typ.)
- Rail-to-Rail Input: VSS
- 0.3V to VDD + 0.3V
- CMOS/TTL-patible Output
- Propagation Delay: 4 µs
(typical, 100 m V Overdrive)
- Wide Supply Voltage Range: 1.6V to 5.5V
- Available in Single, Dual and Quad
- Single Available in SOT-23-5, SC-70-5
- Packages
- Chip Select (CS) with MCP6543
- Low Switching Current
- Internal Hysteresis: 3.3 m V (typ.)
- Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Typical Applications
- Laptop puters
- Mobile Phones
- Metering Systems
- Hand-held Electronics
- RC Timers
- Alarm and Monitoring Circuits
- Windowed parators
- Multivibrators
Related Devices
- Open-Drain Output: MCP6546/7/8/9
Package Types

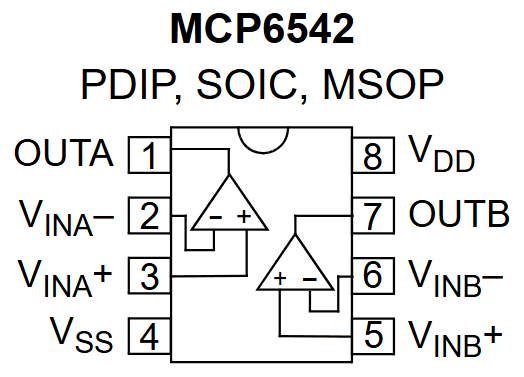

MCP6541 PDIP, SOIC, MSOP
NC 1
VIN- 2 -VINA+ 3 +
VSS 4
8 NC 7 VDD 6 OUT 5 NC
MCP6541R SOT-23-5
OUT 1 VDD 2 VIN+ 3
5 VSS 4 VIN-
+
- + +
MCP6541 SC-70-5,...
Representative MCP6542 image (package may vary by manufacturer)
