PIC12F675
PIC12F675 is 8-Pin FLASH-Based 8-Bit CMOS Microcontrollers manufactured by Microchip Technology.
- Part of the PIC12F629 comparator family.
- Part of the PIC12F629 comparator family.

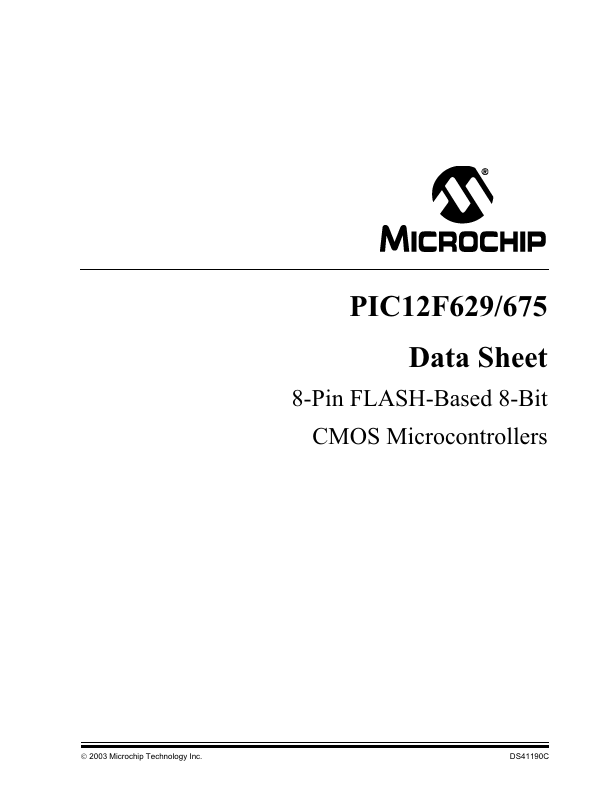

PIC12F629/675
Data Sheet
8-Pin FLASH-Based 8-Bit CMOS Microcontrollers
2003 Microchip Technology Inc.
DS41190C
PIC12F629/675
8-Pin FLASH-Based 8-Bit CMOS Microcontroller
High Performance RISC CPU:
- Only 35 instructions to learn
- All single cycle instructions except branches
- Operating speed:
- DC
- 20 MHz oscillator/clock input
- DC
- 200 ns instruction cycle
- Interrupt capability
- 8-level deep hardware stack
- Direct, Indirect, and Relative Addressing modes
Special Microcontroller Features
:
- Internal and external oscillator options
- Precision Internal 4 MHz oscillator factory calibrated to ±1%
- External Oscillator support for crystals and resonators
- 5 µs wake-up from...

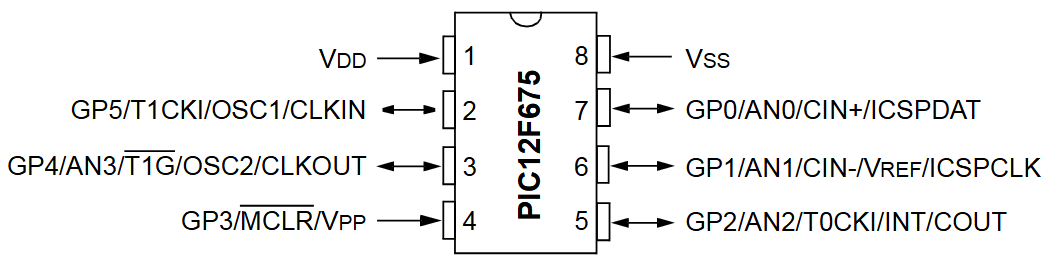

Representative PIC12F675 image (package may vary by manufacturer)
