PIC16F877A - Flash Microcontrollers

Download the PIC16F877A datasheet PDF. This datasheet also covers the PIC16F873A variant, as both devices belong to the same flash microcontrollers family and are provided as variant models within a single manufacturer datasheet.

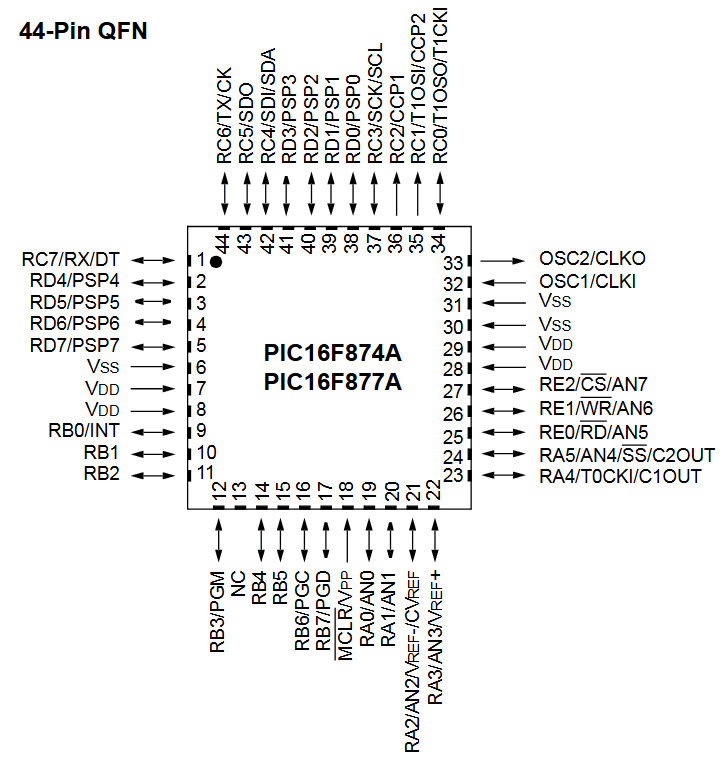

Key Features

  • Timer0: 8-bit timer/counter with 8-bit prescaler.
  • Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock.
  • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler.
  • Two Capture, Compare, PWM modules - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit.
  • Synchronous Serial Port (SSP) with SPI (Master mode) a.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PIC16F873A-Microchip.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
PIC16F818 18/20-Pin Enhanced Flash Microcontrollers Microchip Technology
PIC16F819 18/20-Pin Enhanced Flash Microcontrollers Microchip Technology
PIC16F83 18-pin Flash/EEPROM 8-Bit Microcontrollers Microchip Technology
PIC16F84 18-pin Flash/EEPROM 8-Bit Microcontrollers Microchip Technology
PIC16F84A 18-pin Enhanced Flash/EEPROM 8-Bit Microcontroller Microchip Technology

Other Datasheets by Microchip Technology

Part Number Description
PIC16F877 8-Bit CMOS FLASH Microcontrollers
PIC16F87 Flash MCU
PIC16F870 8-Bit CMOS FLASH Microcontrollers
PIC16F871 8-Bit CMOS FLASH Microcontrollers
PIC16F872 8-Bit CMOS Flash Microcontroller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
PIC16F87XA 28/40/44-Pin Enhanced Flash Microcontrollers Devices Included in this Data Sheet: • PIC16F873A • PIC16F874A • PIC16F876A • PIC16F877A High-Performance RISC CPU: • Only 35 single-word instructions to learn • All single-cycle instructions except for program branches, which are two-cycle • Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle • Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory • Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers Peripheral Features: • Timer0: 8-bit timer/counter with 8-bit prescaler • Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock • Timer2: 8-bit timer/coun
