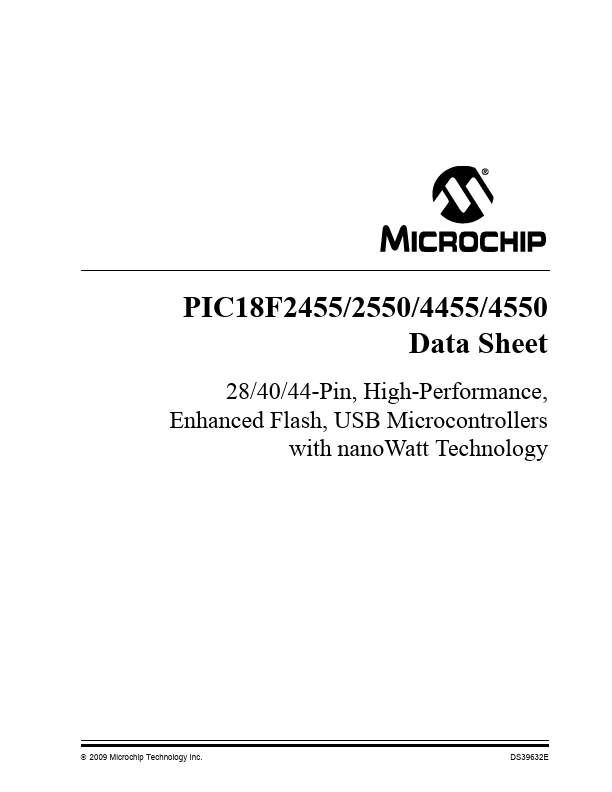

PIC18F2455/2550/4455/4550 Data Sheet 28/40/44-Pin, High-Performance, Enhanced Flash, USB Microcontrollers with nanoWatt Technology © 2009 Microchip Technology Inc. DS39632E PIC18F2455/2550/4455/4550 28/40/44-Pin, High-Performance, Enhanced Flash, USB Microcontrollers with nanoWatt Technology Universal Serial Bus Features : - USB V2.0 pliant - Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s) - Supports Control, Interrupt, Isochronous and Bulk Transfers - Supports up to 32 Endpoints (16 bidirectional) - 1 Kbyte Dual Access RAM for USB - On-Chip USB Transceiver with On-Chip Voltage Regulator - Interface for Off-Chip USB Transceiver - Streaming Parallel Port (SPP) for USB streaming...
