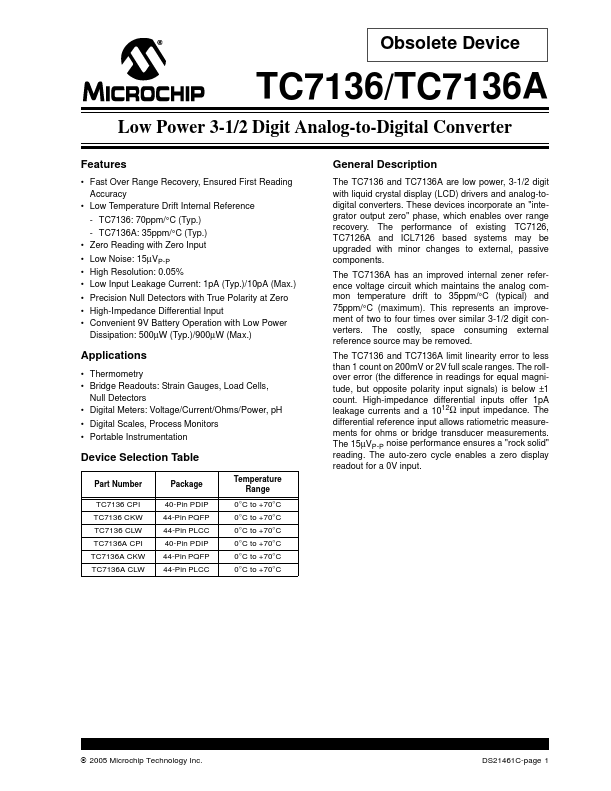

Microchip Technology TC7136
The TC7136 and TC7136A are low power, 3-1/2 digit with liquid crystal display (LCD) drivers and analog-todigital converters. These devices incorporate an "integrator output zero" phase, which enables over range recovery. The performance of existing TC7126, TC7126A and ICL7126 based systems may be upgraded with minor changes to external, passive components.| Part No. | TC7136 |
|---|---|
| Datasheet | TC7136 Download |
| Manufacturer |  Microchip Technology |
| Description | Low Power 3-1/2 Digit Analog-to-Digital Converter |
| Buy | Stock & Price |
FEATURES
● Fast Over Range Recovery, Ensured First Reading Accuracy● Low Temperature Drift Internal Reference - TC7136: 70ppm/°C (Typ.) - TC7136A: 35ppm/°C (Typ.)
● Zero Reading with Zero Input
● Low Noise: 15μVP-P
● High Resolution: 0.05%
● Low Input Leakage Current: 1pA (Typ.)/10pA (Max.)
● Precision Null Detectors with True Polarity at Zero
● High-Impedance Differential Input
● Convenient 9V Battery Operation with Low Power Dissipation: 500μW (Typ.)/900μW (Max.)
APPLICATIONS
● Thermometry● Bridge Readouts: Strain Gauges, Load Cells, Null Detectors
● Digital Meters: Voltage/Current/Ohms/Power, pH
● Digital Scales, Process Monitors

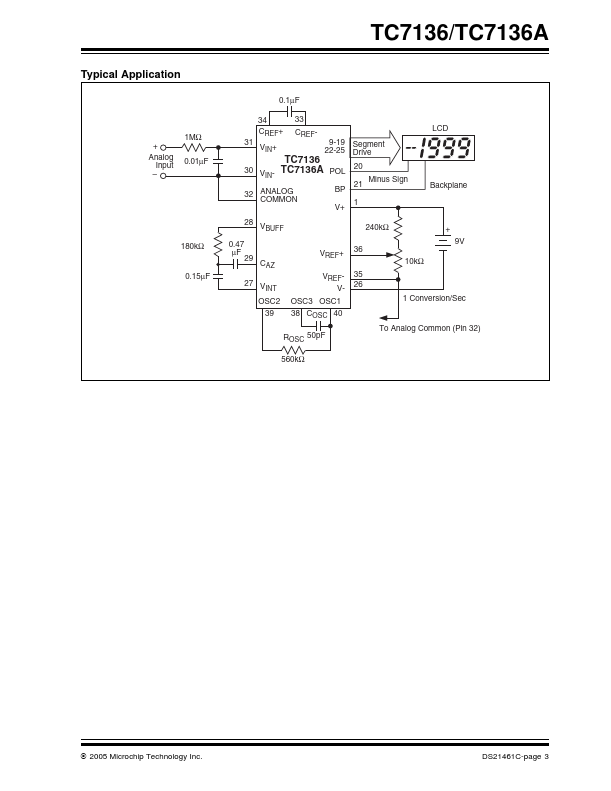

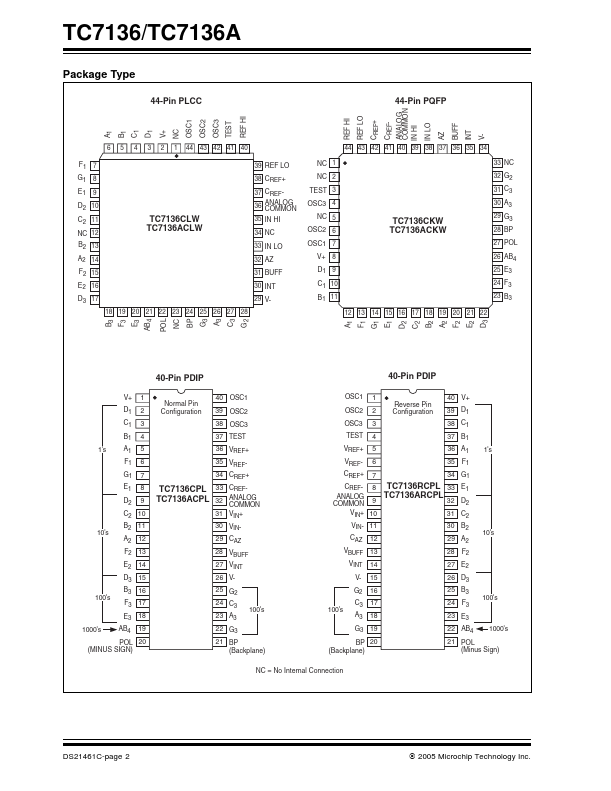

● Portable Instrumentation Device Selection Table Part Number TC7136 CPI TC7136 CKW TC7136 CLW TC7136A CPI TC7136A CKW TC7136A CLW Package 40-Pin PDIP 44-Pin PQFP 44-Pin PLCC 40-Pin PDIP 44-Pin PQFP 44-Pin PLCC Temperature Range 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C
GENERAL DESCRIPTION
The TC7136A has an improved internal zener reference voltage circuit which maintains the analog common temperature drift to 35ppm/°C (typical) and 75ppm/°C (maximum).
