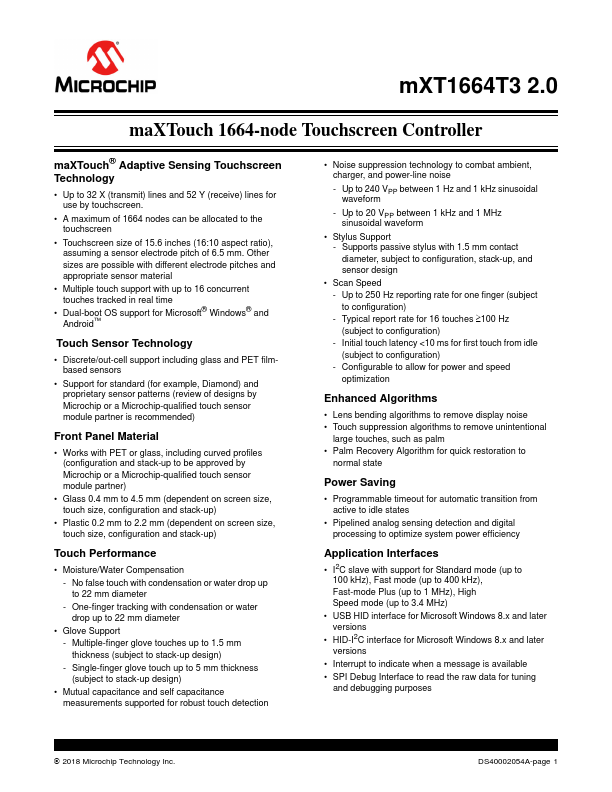

Datasheet Summary
mXT1664T3 2.0 maXTouch 1664-node Touchscreen Controller maXTouch® Adaptive Sensing Touchscreen Technology
- Up to 32 X (transmit) lines and 52 Y (receive) lines for use by touchscreen.
- A maximum of 1664 nodes can be allocated to the touchscreen
- Touchscreen size of 15.6 inches (16:10 aspect ratio), assuming a sensor electrode pitch of 6.5 mm. Other sizes are possible with different electrode pitches and appropriate sensor material
- Multiple touch support with up to 16 concurrent touches tracked in real time
- Dual-boot OS support for Microsoft® Windows® and Android™
Touch Sensor Technology
- Discrete/out-cell support including glass and PET filmbased sensors
- Support for standard...
