3232K - RS-232 Transceiver

Description

The 3232K is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or laptop computers.

The 3232K has a high-efficiency, chargepump power supply that requires only 0.1µF capacitors in 3.3V operation.

Features

  • Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply.
  • 250kbps Transmission Rate Under Load.
  • Interoperable with RS-232 down to a +2.7V power source.
  • Enhanced ESD Specifications: +15kV Human Body Model +15kV IEC61000-4-2 Air Discharge +8kV IEC61000-4-2 Contact Discharge.

📥 Download Datasheet

Datasheet preview – 3232K

Datasheet Details

Part number 3232K
Manufacturer Mikron
File Size 835.21 KB
Description RS-232 Transceiver
Datasheet download datasheet 3232K Datasheet

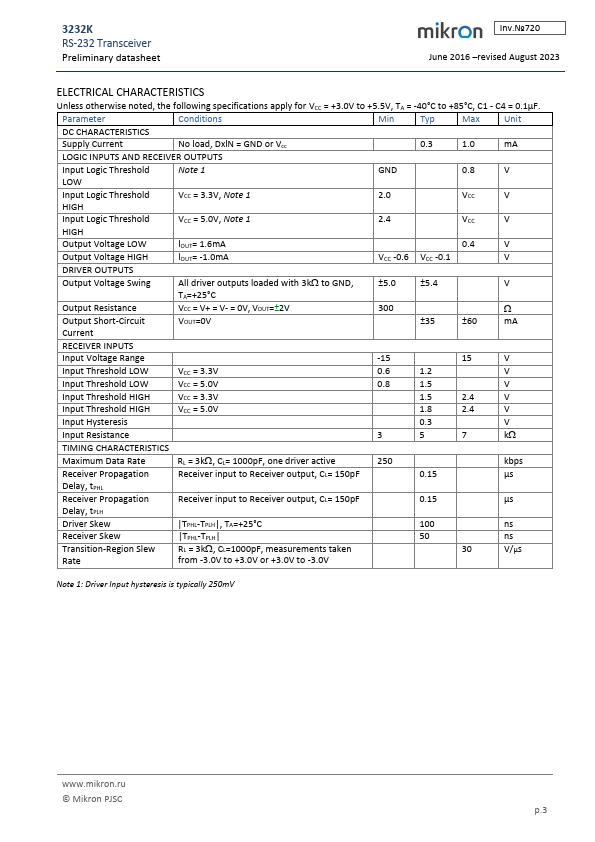

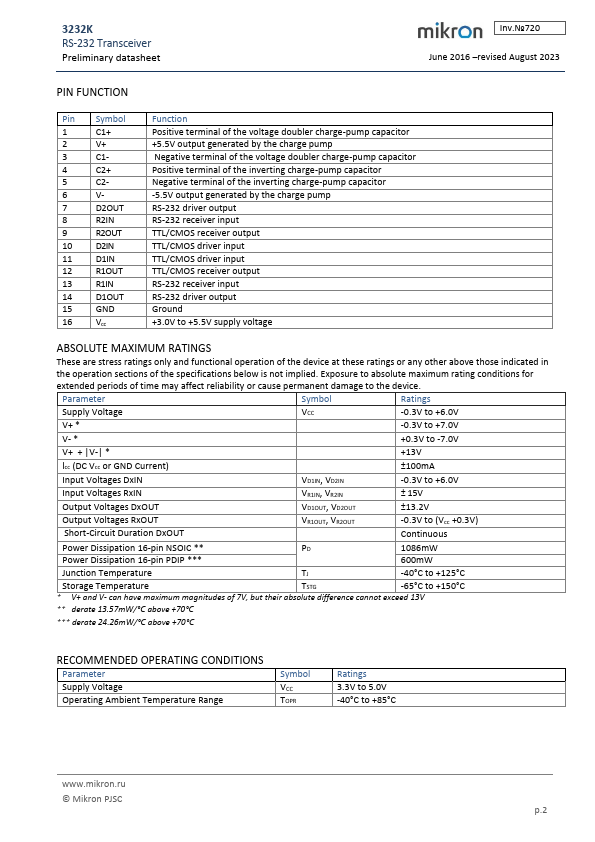

Additional preview pages of the 3232K datasheet.

📁 Similar Datasheet

  • 3232EE - SP3232EE (Sipex Corporation)
  • 32304118 - Magnetoresistive Sensor (Honeywell)
  • 32305128 - Basic Board Mount Pressure Sensors (Honeywell)
  • 3235 - DUAL-OUTPUT HALL-EFFECT SWITCH (Allegro MicroSystems)
Other Datasheets by Mikron

    Full PDF Text Transcription

    Click to expand full text

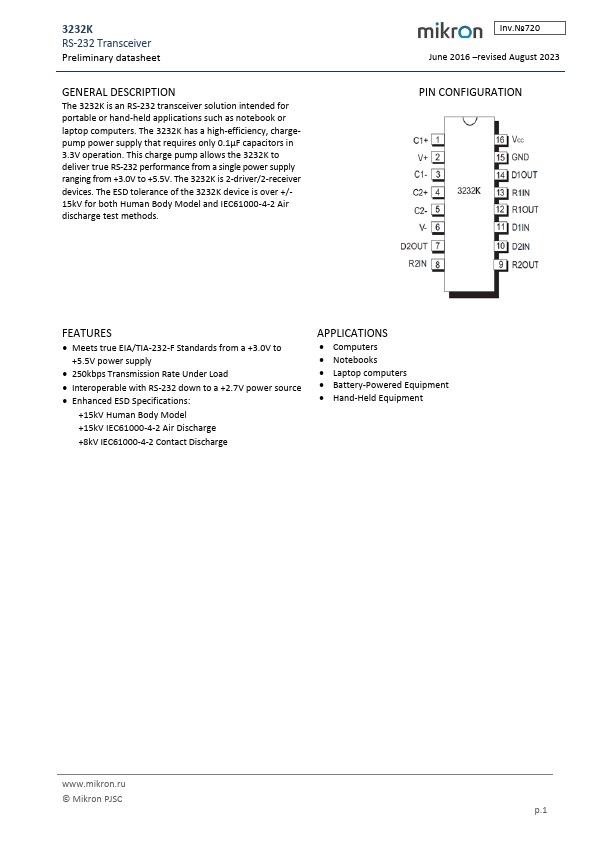

    3232K RS-232 Transceiver Preliminary datasheet GENERAL DESCRIPTION The 3232K is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or laptop computers. The 3232K has a high-efficiency, chargepump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the 3232K to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The 3232K is 2-driver/2-receiver devices. The ESD tolerance of the 3232K device is over +/15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. Inv.№720 June 2016 –revised August 2023 PIN CONFIGURATION FEATURES  Meets true EIA/TIA-232-F Standards from a +3.0V to +5.
