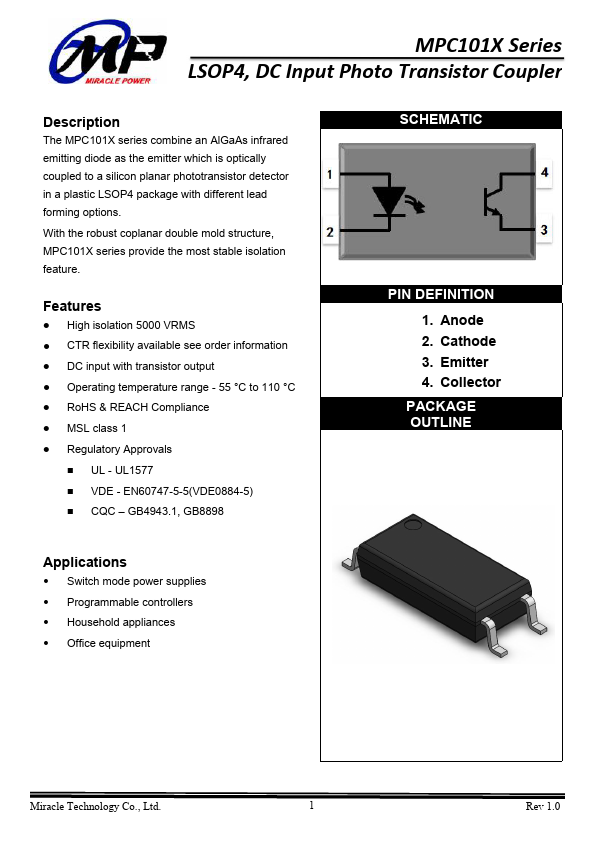

MPC1010 Overview
The MPC101X series bine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic LSOP4 package with different lead forming options. With the robust coplanar double mold structure, MPC101X series provide the most stable isolation.
MPC1010 Key Features
- High isolation 5000 VRMS
- CTR flexibility available see
