Miracle Technology MPC1012
The MPC101X series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic LSOP4 package with different lead forming options. With the robust coplanar double mold structure, MPC101X series provide the most stable isolation feature.| Part No. | MPC1012 |
|---|---|
| Datasheet | MPC1012 Download |
| Manufacturer | Miracle Technology |
| Description | DC Input Photo Transistor Coupler |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
● High isolation 5000 VRMS● CTR flexibility available see order information
● DC input with transistor output
● Operating temperature range - 55 °C to 110 °C
● RoHS & REACH Compliance
● MSL class 1
● Regulatory Approvals
● UL - UL1577
● VDE - EN60747-5-5(VDE0884-5)
● CQC – GB4943.1, GB8898 SCHEMATIC PIN DEFINITION 1. Anode 2. Cathode 3. Emitter 4. Collector PACKAGE OUTLINE
APPLICATIONS
● Switch mode power supplies● Programmable controllers
● Household appliances
● Office equipment Miracle Technology Co., Ltd. 1 Rev 1.0 MPC101X Series LSOP4, DC Input Photo Transistor Coupler

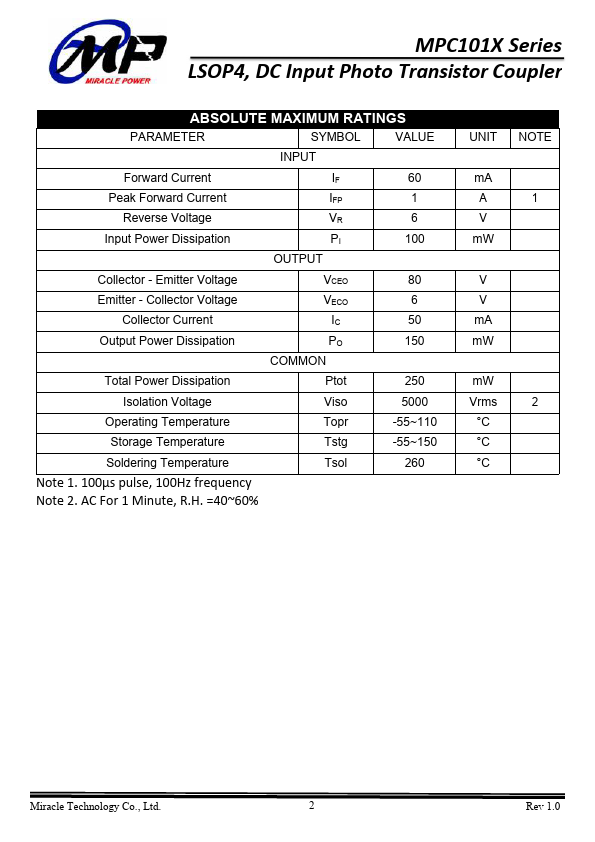

ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL VALUE INPUT Forward Current IF 60 Peak Forward Current IFP 1 Reverse Voltage VR 6 Input Power Dissipation PI 100 OUTPUT Collector - Emitter Voltage VCEO 80 Emitter - Collector Voltage VECO 6 Collector Current IC 50 Output Power Dissipation PO 150 COMMON Total Power Dissipation Ptot 250 Isolation Voltage Viso 5000 Operating Temperature Topr -55~110 Storage Temperature Tstg -55~150 Soldering Temperature Tsol 260 Note 1.
