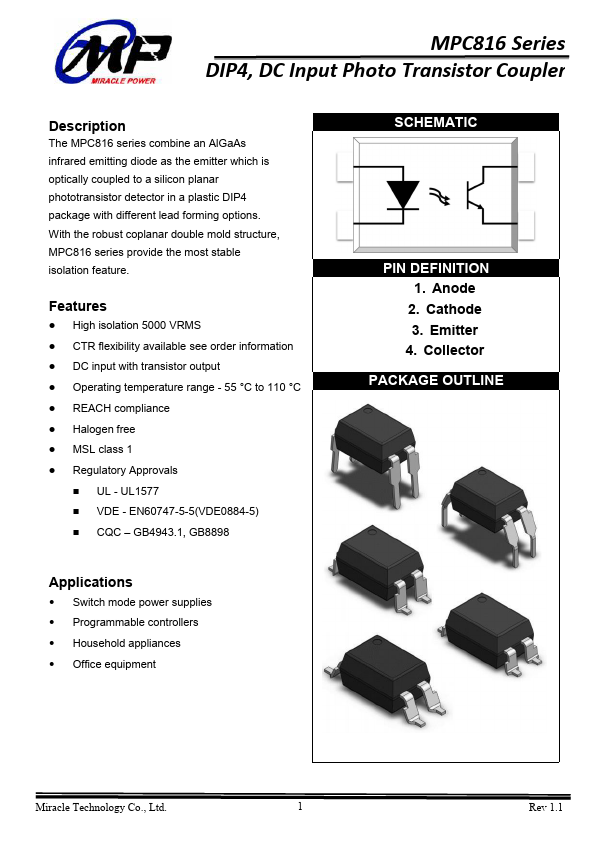

Datasheet Summary
MPC816 Series DIP4, DC Input Photo Transistor Coupler
Description
The MPC816 series bine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor detector in a plastic DIP4 package with different lead forming options. With the robust coplanar double mold structure, MPC816 series provide the most stable isolation feature.
Features
- High isolation 5000 VRMS
- CTR flexibility available see order information
- DC input with transistor output
- Operating temperature range
- 55 °C to 110 °C
- REACH pliance
- Halogen free
- MSL class 1
- Regulatory Approvals
- UL
- UL1577
- VDE
- EN60747-5-5(VDE0884-5)
- CQC
- GB4943.1, GB8898
SCHEMATI...
