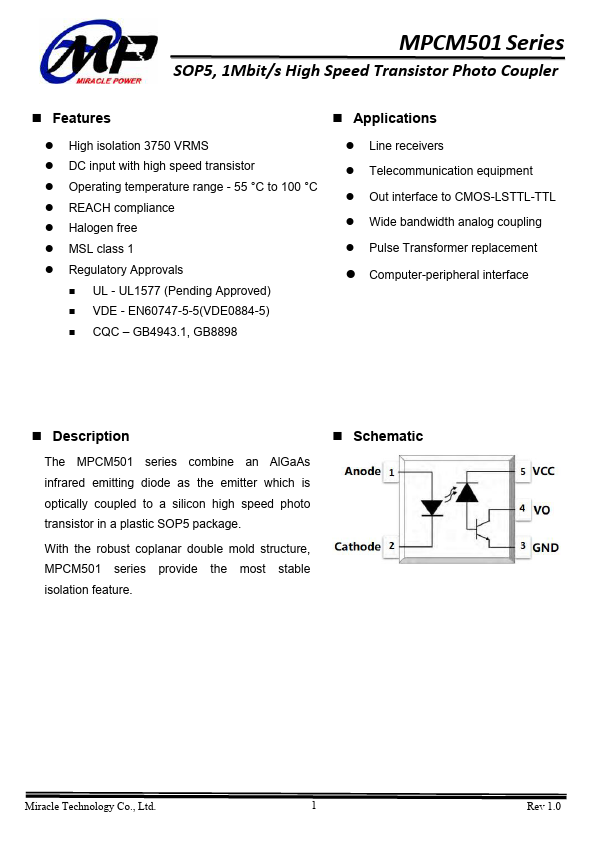

Datasheet Summary
MPCM501 Series
SOP5, 1Mbit/s High Speed Transistor Photo Coupler
- Features
- Applications
- High isolation 3750 VRMS
- DC input with high speed transistor
- Operating temperature range
- 55 °C to 100 °C
- REACH pliance
- Halogen free
- MSL class 1
- Regulatory Approvals
- UL
- UL1577 (Pending Approved)
- VDE
- EN60747-5-5(VDE0884-5)
- CQC
- GB4943.1, GB8898
- Line receivers
- Telemunication equipment
- Out interface to CMOS-LSTTL-TTL
- Wide bandwidth analog coupling
- Pulse Transformer replacement
- puter-peripheral interface
- Description
The MPCM501 series bine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon high speed photo...
