YT8531DC Datasheet | Motorcomm

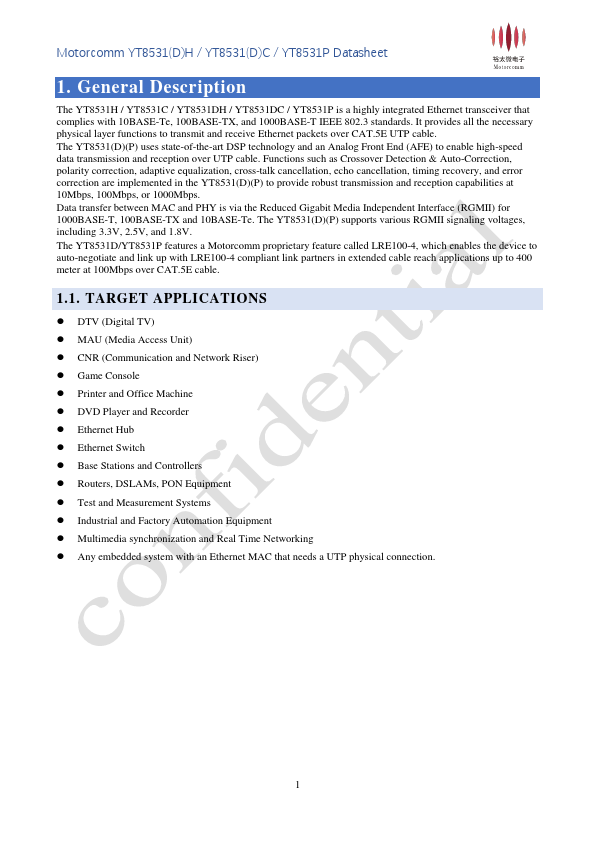

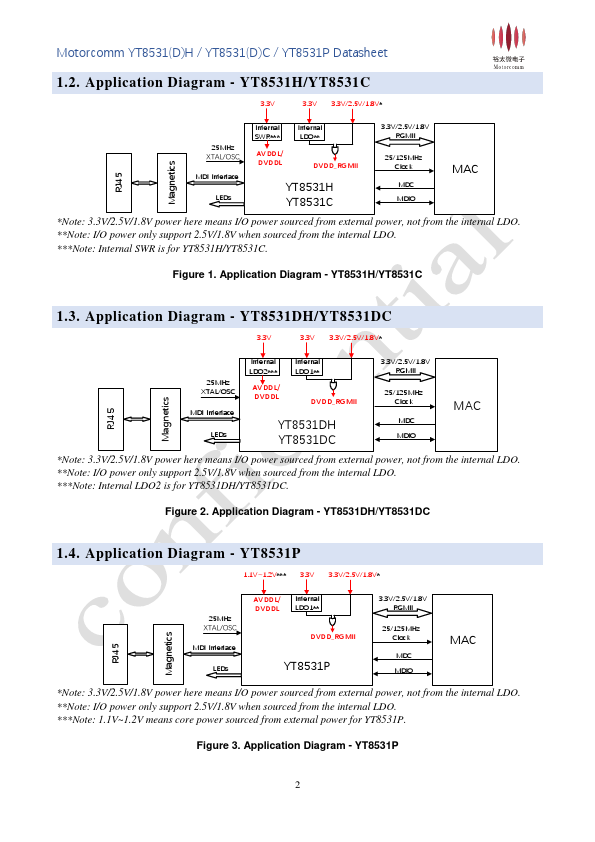

Description The YT8531H / YT8531C / YT8531DH / YT8531DC / YT8531P is a highly integrated Ethernet transceiver that plies with 10BASE-Te, 100BASE-TX, and 1000BASE-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5E UTP cable. The YT8531(D)(P) uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented in the YT8531(D)(P) to provide robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps. Data transfer between MAC and PHY is via the Reduced Gigabit Media Independent Interface (RGMII) for 1000BASE-T, 100BASE-TX and 10BASE-Te. The YT8531(D)(P) supports various RGMII signaling voltages, including 3.3V, 2.5V, and 1.8V. The YT8531D/YT8531P features a Motorm proprietary feature called LRE100-4, which enables the device to auto-negotiate and link up with LRE100-4 pliant link partners in extended cable reach applications up to 400 meter at 100Mbps over CAT.5E cable. 1.1. TARGET APPLICATIONS - DTV (Digital TV) - MAU (Media Access Unit) - CNR (munication and Network Riser) - Game Console - Printer and Office Machine - DVD Player and Recorder - Ethernet Hub - Ethernet Switch - Base Stations and Controllers - Routers, DSLAMs, PON Equipment - Test and Measurement Systems - Industrial and Factory Automation Equipment - Multimedia synchronization and Real Time Networking - Any embedded system with an Ethernet MAC that needs a UTP physical connection. Motorm YT8531(D)H / YT8531(D)C / YT8531P Datasheet 1.2. Application Diagram - YT8531H/YT8531C 3.3V 3.3V 3.3V/2.5V/1.8V- RJ4 5 Magnetics 25MHz XTAL/OSC MDI Interface LEDs Internal SWR - - - Internal LDO- - AV DDL/ DVDDL DVDD_RGMII YT8531H YT8531C 3.3V/2.5...
