YT8821 Overview

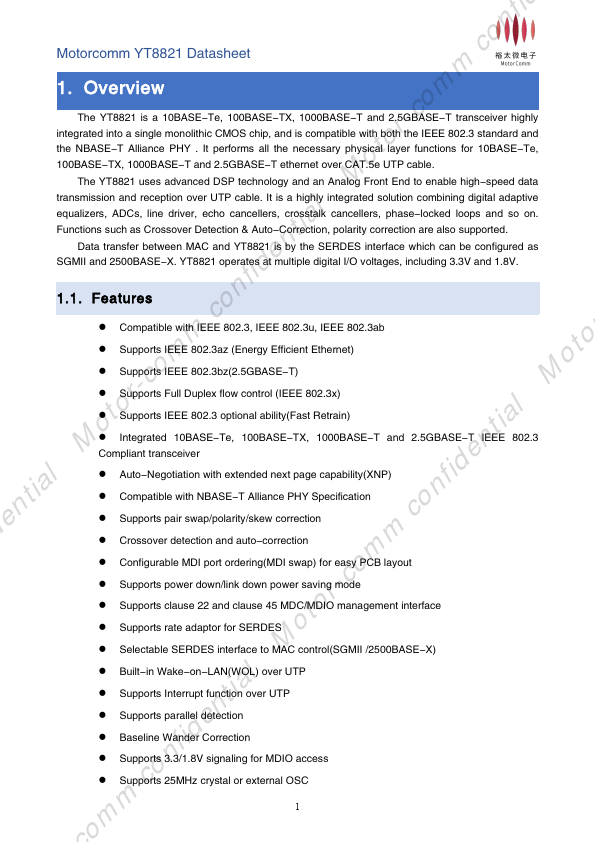

Overview m The YT8821 is a 10BASE-Te, 100BASE-TX, 1000BASE-T and 2.5GBASE-T transceiver highly r- integrated into a single monolithic CMOS chip, and is patible with both the IEEE 802.3 standard and to the NBASE-T Alliance PHY . It performs all the necessary physical layer functions for 10BASE-Te, o 100BASE-TX, 1000BASE-T and 2.5GBASE-T ethernet over CAT.5e UTP cable. M The YT8821 uses advanced DSP technology and an...
YT8821 Key Features
- patible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (Energy Efficient Ethernet) om o
- Supports IEEE 802.3bz(2.5GBASE-T) -c M
- Supports Full Duplex flow control (IEEE 802.3x) tor l
- Supports IEEE 802.3 optional ability(Fast Retrain) o tia
- Integrated 10BASE-Te, 100BASE-TX, 1000BASE-T and 2.5GBASE-T IEEE 802.3 M n pliant transceiver fide
- Auto-Negotiation with extended next page capability(XNP) n
- patible with NBASE-T Alliance PHY Specification co
- Supports pair swap/polarity/skew correction
- Provides 25MHz clock source for MAC m

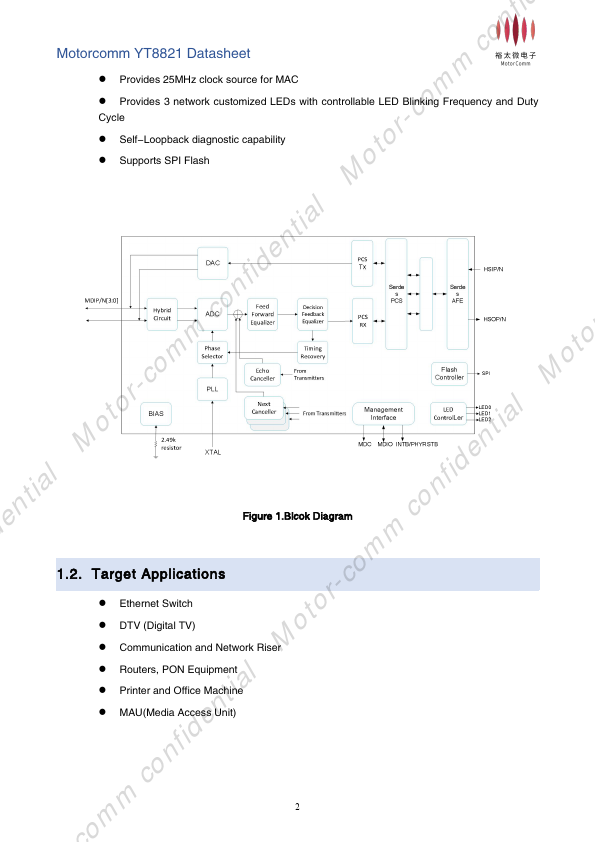

YT8821 Applications
- Ethernet Switch to
