| Part number | MMBT6520 |
|---|---|
| Datasheet | MMBT6520-Motorola.pdf |
| File Size | 34.19 KB |
| Manufacturer | Motorola Semiconductor (now NXP Semiconductors) |
| Description | HIGH VOLTAGE TRANSISTOR |
|
|
|

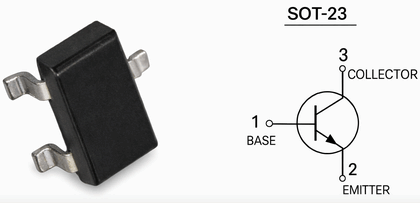

MMBT6520 CASE 318-02/03, STYLE 6 SOT-23 (TO-236AA/AB) HIGH VOLTAGE TRANSISTOR PNP SILICON Refer to 2N6520 for graphs. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current Collector Current Continuous Symbol v CEO v CBO Vebo IB 'C THERMAL CHARACTERISTICS Characteristic Symbol Total Device Dissipation, T^ = 25°C Derate above 25°C PD Storage Temperature T stq...
