Motorola MOC3041

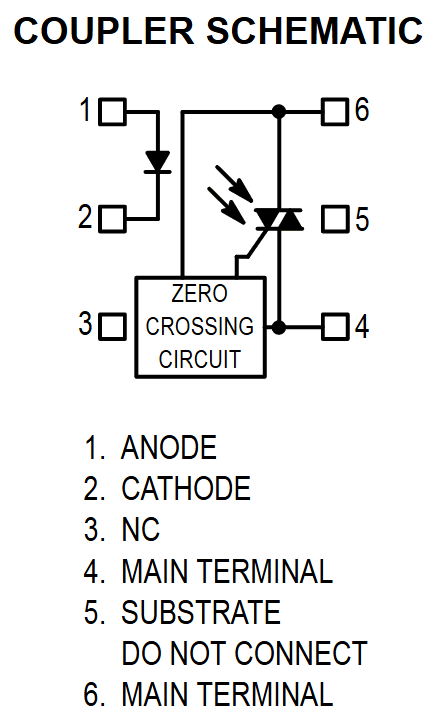

The MOC3041, MOC3042 and MOC3043 devices consist of gallium arsenide infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.| Part No. | MOC3041 |
|---|---|
| Datasheet | MOC3041 Download |
| Manufacturer |  Motorola |
| Description | 6-Pin DIP Zero-Cross Optoisolators Triac |
| Buy | Stock & Price |
APPLICATIONS
:● Solenoid/Valve Controls
● Lighting Controls
● Static Power Switches
● AC Motor Drives
MAXIMUM RATINGS
(TA = 25°C unless otherwise noted) Rating INFRARED EMITTING DIODE Reverse Voltage Forward Current — Continuous Total Power Dissipation @ TA = 25°C Negligible Power in Output Driver Derate above 25°C OUTPUT DRIVER Off–State Output Terminal Voltage Peak Repetitive Surge Current (PW = 100 µs, 120 pps) Total Power Dissipation @ TA = 25°C Derate above 25°C TOTAL DEVICE Isolation Surge Voltage(1) (Peak ac Voltage, 60 Hz, 1 Second Duration) Total Power Dissipation @ TA = 25°C Derate above 25°C Junction Temperature Range Ambient Operating Temperature Range(2) Storage Temperature Range(2) VISO PD TJ TA Tstg 7500 250 2.94 – 40 to +100 – 40 to +85 – 40 to +150 Vac(pk) mW mW/°C °C °C °C VDRM ITSM PD 400 1 150 1.76 Volts A mW mW/°C VR IF PD 6 60 120 1.41 Volts mA mW mW/°C Symbol Value Unit GlobalOptoisolator™ MOC3041 MOC3042 MOC3043 * [IFT = 15 mA Max] [IFT = 10 mA Max] [IFT = 5 mA Max] *Motorola Preferred Device STYLE 6 PLASTIC 6 1 STANDARD THRU HOLE CASE 730A–04●
●
●
● Temperature Controls E.M.
