ARC3C0845 - High Efficiency LED Backlight Driver

General Description

The ARC3C0845/ARC3C0845W is an ultra-high efficiency DC/DC converter solution with integrated programmable current sinks that drive up to eight strings of LEDs.

The ARC3C0845/ARC3C0845W integrates all MOSFETs and their control & driver circuitry.

Key Features

  • Synchronous DC/DC converter with integrated FETs.
  • 2- and 3-cell Li-Ion battery input voltage: 4.5V to 15V.
  • Proprietary architecture for ultra-high LED efficiency, above 88% over the entire operating range.
  • Integrated output disconnect switch.
  • Up to 45V output for maximum flexibility in assignment of LEDs to strings and selection of LED forward voltage.
  • Up to 12-bit dimming resolution with an additional 3bit dithering.
  • Supports linear/logarithmic analog and PWM.

📥 Download Datasheet

Datasheet Details

Part number ARC3C0845
Manufacturer Murata
File Size 9.53 MB
Description High Efficiency LED Backlight Driver
Datasheet download datasheet ARC3C0845 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ARC3C0845 High-Efficiency LED Backlight Driver pSemi
ARC3C0845W High-Efficiency LED Backlight Driver pSemi
ARC241 Array chip resistors ETC
ARC242 Array chip resistors ETC

Other Datasheets by Murata

Part Number Description
ARC3C0845W High Efficiency LED Backlight Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

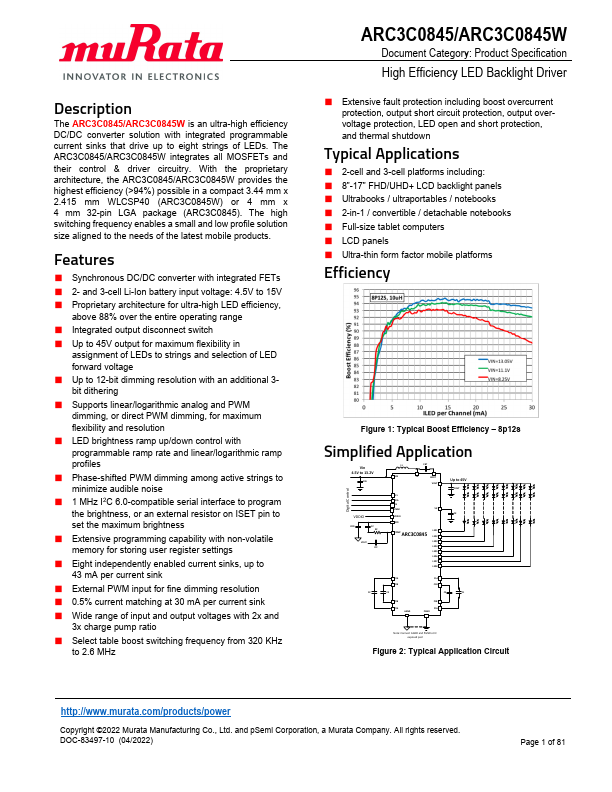

Description The ARC3C0845/ARC3C0845W is an ultra-high efficiency DC/DC converter solution with integrated programmable current sinks that drive up to eight strings of LEDs. The ARC3C0845/ARC3C0845W integrates all MOSFETs and their control & driver circuitry. With the proprietary architecture, the ARC3C0845/ARC3C0845W provides the highest efficiency (>94%) possible in a compact 3.44 mm x 2.415 mm WLCSP40 (ARC3C0845W) or 4 mm x 4 mm 32-pin LGA package (ARC3C0845). The high switching frequency enables a small and low profile solution size aligned to the needs of the latest mobile products. Features ■ Synchronous DC/DC converter with integrated FETs ■ 2- and 3-cell Li-Ion battery input voltage: 4.
