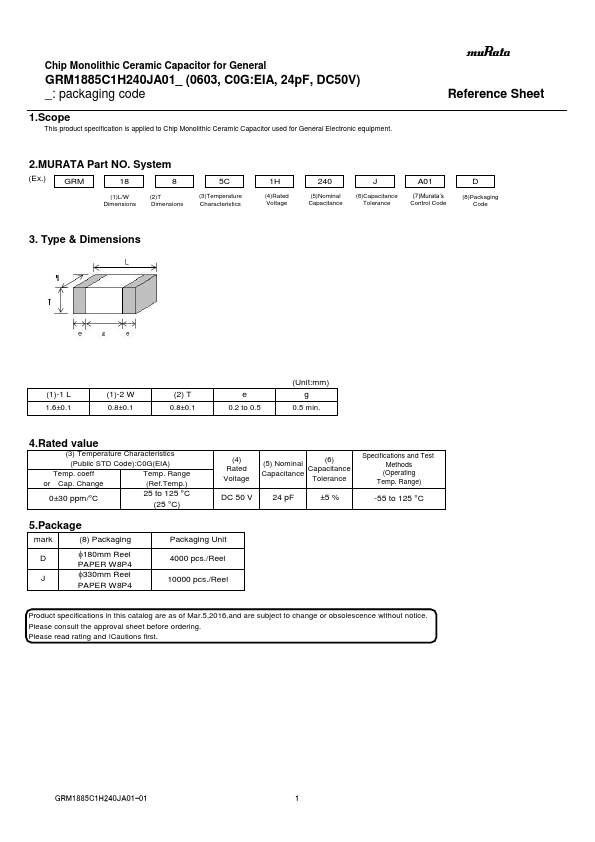

GRM1885C1H240JA01D
Chip Monolithic Ceramic Capacitor for General
GRM1885C1H240JA01_ (0603, C0G:EIA, 24p F, DC50V) _: packaging code
Reference Sheet
1.Scope
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.
2.MURATA Part NO. System
(Ex.) GRM
(1)L/W Dimensions
(2)T Dimensions
5C
(3)Temperature Characteristics
1H
(4)Rated Voltage
(5)Nominal Capacitance
(6)Capacitance Tolerance
A01
(7)Murata’s Control Code
(8)Packaging Code
3. Type & Dimensions
(1)-1 L 1.6±0.1
(1)-2 W 0.8±0.1
(2) T 0.8±0.1 e 0.2 to 0.5
(Unit:mm) g
0.5 min.
4.Rated value
(3) Temperature Characteristics
(Public STD Code):C0G(EIA)
Temp. coeff or Cap. Change
Temp. Range (Ref.Temp.)
0±30 ppm/°C
25 to 125 °C (25 °C)
(4) Rated Voltage
(5) Nominal Capacitance
(6)...
